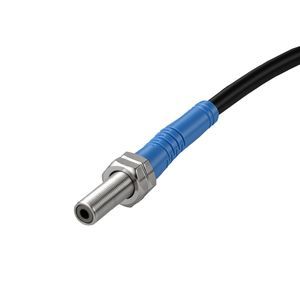

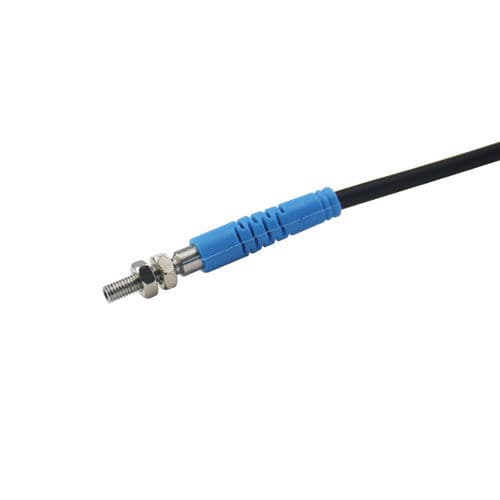

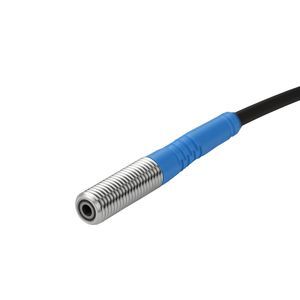

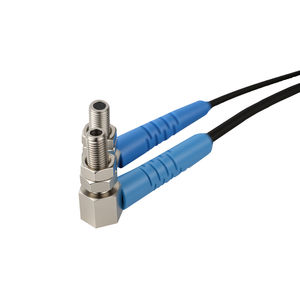

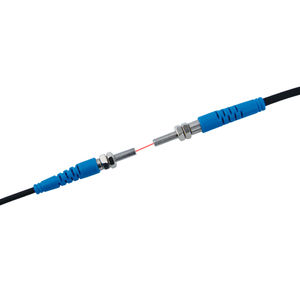

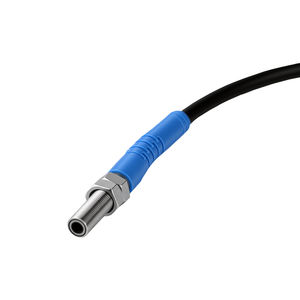

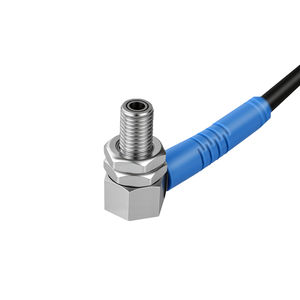

Fiber optic sensor head CX3-DE3L40N1

Fiber optic sensor head - CX3-DE3L40N1 - CHANKO SENSOR
Fiber optic sensor head - CX3-DE3L40N1 - CHANKO SENSOR
Add to favorites
Compare this product
Go to the CHANKO SENSOR website for more information

Description

Product
  • Model: CX3-DE3L40N1
  • Series: CX3 laser fiber sensor series
  • Brand: 长江传感


Key features
  • Construction: M3 threaded, straight type
  • Detection principle: Diffuse-reflection
  • Light source: Laser
  • Detection distance: 5–40 mm
  • Spot diameter: ~Φ1.5 mm
  • Output: NPN NO (switch type)
  • Ingress protection: IP65


Technical specifications
  • Light source: Laser
  • Detection principle: Diffuse-reflection
  • Dimensions: M3 straight
  • Detection distance: 5–40 mm
  • Spot diameter: ~Φ1.5 mm
  • IP rating: IP65
  • Cable: Φ3.8 mm PVC, length 1.5 m
  • Operating temperature: 0–50 °C
  • Housing material: Stainless steel


Mechanical / Electrical parameters
  • Supply voltage: DC 12–24 V
  • Output type: NPN NO
  • Operating mode: Light ON
  • Response frequency: 100 Hz
  • Signal type: Switching
  • Current consumption: <10 mA
  • Circuit protection: Short-circuit and overload protection
  • Load current: 120 mA


Recommended applications
  • 3C electronics inspection and assembly
  • Automated parking systems (parking guidance)
  • Logistics and warehouse automation
