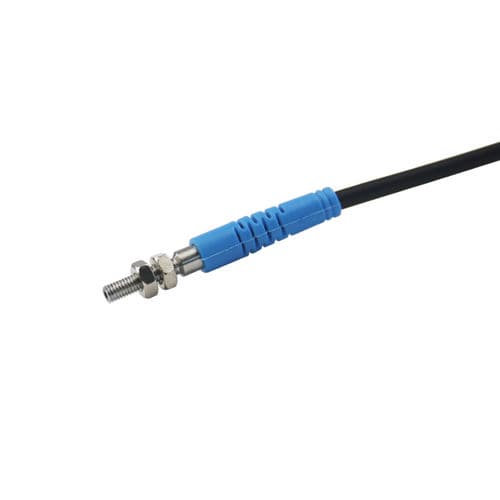

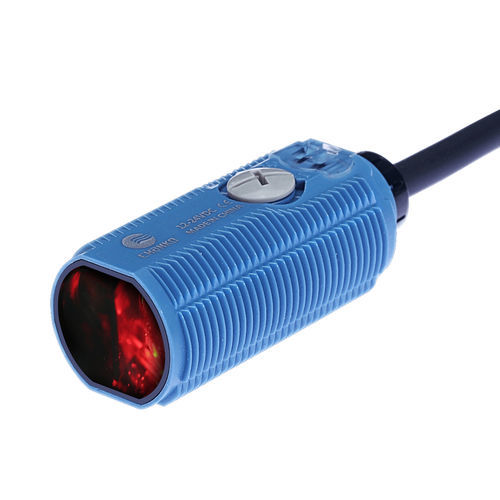

Fiber optic sensor head CPA-DF300P3-A
Add to favorites
Compare this product
Description
Product overview
Technical specifications
Mechanical / electrical parameters
Operating environment
Key features
- Detection distance: 0–300 mm
- Sensor type: diffuse-reflective
- Housing: cylindrical, M18
- Output: PNP NO/NC
- Supply voltage: DC 12–24 V
Technical specifications
- Detection distance: 0–300 mm (standard test: white painted paper 300×300 mm)
- Structure: cylindrical (M18)
- Sensing principle: diffuse reflection
- Cable length: 0.5 m
- Detection direction: front
- Operating frequency: 500 Hz
- Response time: 1 ms
- Light source: infrared
- Accessories: user manual, M18 nuts ×2, conformity certificate
- Hysteresis: less than 20% of detection distance
- Materials: housing/nuts: ABS; lens/display window: PMMA; knob: POM; cable: PVC
Mechanical / electrical parameters
- Output type: PNP, NO/NC selectable
- Supply: DC 12–24 V (four-wire)
- Protection rating: IP65
- Connection: M12 connector (relay type)
- Signal type: switching
- Operating modes: Light ON / Dark ON
- Current consumption: < 25 mA
- Indicators: operation (orange), stability (green)
- Protection: short-circuit protection
- Residual voltage: < 3 V (load supply < 30 V)
- Load current: < 100 mA (residual voltage < 3 V)
- Insulation resistance: > 20 MΩ (DC 500 V megger)
- Sensitivity adjustment: single-turn knob
- Shock resistance: 300 m/s², 3 shocks each on X, Y, Z
- Dielectric strength: AC 1000 V 50/60 Hz for 1 min (between live parts and housing)
- Vibration resistance: 10–55 Hz, amplitude 1.5 mm, 2 h each axis
- Weight: approx. 55 g
Operating environment
- Ambient temperature: -25 °C to 55 °C
- Relative humidity: 35–95% RH (no condensation) for operation/storage
- Ambient illumination: < 10000 lx
Key features
- Model: CPA-DF300P3-A
- Diffuse-reflective sensor, detection 0–300 mm
- M18 cylindrical housing, 0.5 m cable, front sensing
- PNP output (NO/NC), DC 12–24 V four-wire, IP65
- 500 Hz switching frequency, 1 ms response time, infrared source
- Includes manual, M18 nuts ×2, conformity certificate
