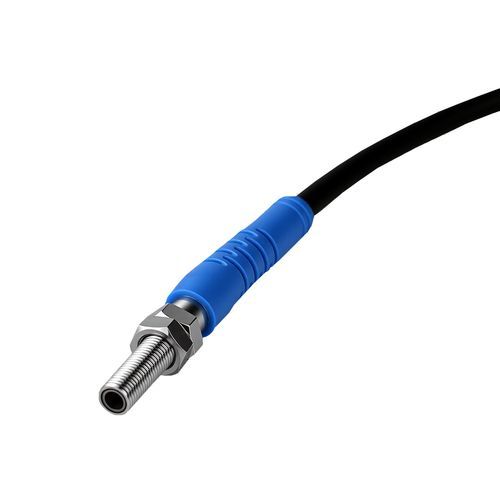

Fiber optic sensor head CX3-DE4L70N1
Add to favorites
Compare this product
Description
Overview
Key features
Technical specifications
Mechanical / Electrical parameters
Recommended applications
Characteristics / Specifications summary
- Model: CX3-DE4L70N1 (CX3 series)
- Type: laser fiber sensor for diffuse-reflective detection
- Form factor: M4 threaded, straight
- Detection distance: 5–70 mm
- Light spot diameter: approx. Ø2 mm
- Output: NPN, normally open (NO)
Key features
- Laser light source with narrow spot for precise detection
- Stainless steel housing for industrial environments
- Ingress protection rating: IP65
- Built-in 1.5 m PVC cable (Ø3.8 mm)
- Compact M4 threaded design for space-constrained installation
Technical specifications
- Light source: Laser
- Detection principle: Diffuse reflection
- Detection range: 5–70 mm
- Spot diameter: approx. Ø2 mm
- Protection class: IP65
- Cable: Ø3.8 mm, 1.5 m PVC
- Operating temperature: 0–50 °C
- Housing material: Stainless steel
Mechanical / Electrical parameters
- Supply voltage: DC 12–24 V
- Output type: NPN NO
- Operating mode: Light ON
- Response frequency: 100 Hz
- Signal type: Discrete switch output
- Current consumption: less than 10 mA
- Circuit protection: short-circuit and overload protection
- Load current: 120 mA
Recommended applications
- 3C electronics assembly and inspection
- Automated parking and presence detection
- Logistics and warehouse automation
Characteristics / Specifications summary
- Series: CX3
- Structure: M4 threaded straight sensor
- Detection: Diffuse reflection, 5–70 mm
- Optical: Laser source, spot ≈ Ø2 mm
- Electrical: DC 12–24 V, NPN NO, Light ON, 100 Hz
- Protection & environment: IP65, 0–50 °C
- Connection: Ø3.8 mm 1.5 m PVC cable
- Material: Stainless steel housing
