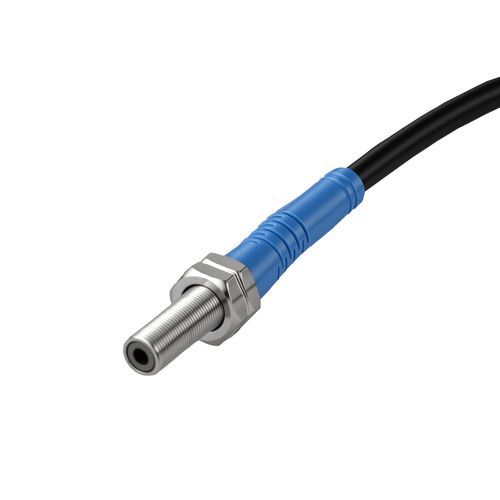

Fiber optic sensor head CX3-DE6L200N1
Add to favorites
Compare this product
Description
Overview
Technical specifications
Mechanical / electrical parameters
Recommended applications
Features / technical data
- Series: CX3 laser fiber sensor, model CX3-DE6L200N1
- Configuration: M6 threaded straight housing
- Detection principle: diffuse-reflective
- Light source: laser
- Detection range: 15–200 mm
- Spot diameter: approx. Φ2 mm
- Output: NPN normally open (NO)
Technical specifications
- Light source: laser
- Housing: M6 threaded straight type
- Detection principle: diffuse-reflective
- Detection range: 15–200 mm
- Ingress protection: IP65
- Cable: Φ3.8 mm PVC, length 1.5 m
- Operating temperature: 0–50 ℃
- Housing material: stainless steel
- Spot diameter: approx. Φ2 mm
Mechanical / electrical parameters
- Supply voltage: DC 12–24 V
- Output type: NPN NO
- Operation mode: Light ON
- Response frequency: 100 Hz
- Signal type: switching
- Current consumption: < 10 mA
- Circuit protection: short-circuit and overload protection
- Load current: 120 mA
Recommended applications
- 3C electronics manufacturing
- Automated parking systems
- Logistics and warehouse automation
Features / technical data
- Series: CX3
- Model: CX3-DE6L200N1
- Detection method: diffuse-reflective laser sensing
- Mounting: M6 threaded straight installation
- Detection range: 15–200 mm
- Output: NPN normally open (switching signal)
- Power supply: DC 12–24 V
- Response frequency: 100 Hz
- Ingress protection: IP65
- Cable: Φ3.8 mm, 1.5 m PVC
- Operating temperature: 0–50 ℃
- Housing material: stainless steel
- Spot diameter: approx. Φ2 mm
- Circuit protection: short-circuit and overload protection
