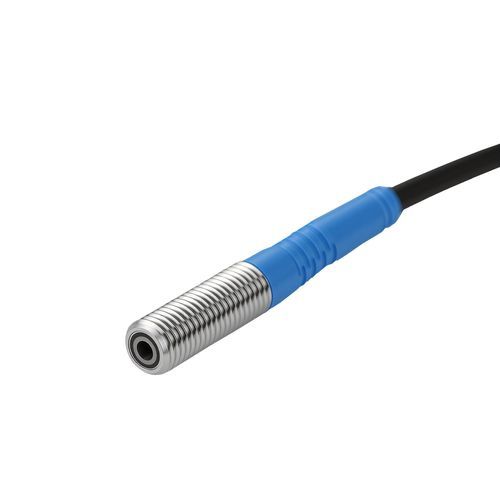

Fiber optic sensor head CX3-DE8L150N1
Add to favorites
Compare this product
Description
Product overview
Key features
Technical specifications
Electrical / mechanical parameters
Recommended applications
- Product: CX3 series laser fiber sensor - model CX3-DE8L150N1
- Series: CX3
Key features
- Housing: threaded M8 linear
- Sensing principle: diffuse-reflective
- Light source: laser
- Detection distance: 15-150 mm
- Spot diameter: approx. Φ2 mm
- Output: NPN Normally Open (NO)
Technical specifications
- Protection rating: IP65
- Cable: Φ3.8 mm PVC cable, length 1.5 m
- Operating temperature: 0-50 °C
- Housing material: stainless steel
- Supply voltage: DC 12-24 V
- Response frequency: 100 Hz
- Signal type: discrete (switch)
- Current consumption: < 10 mA
- Maximum load current: 120 mA
- Circuit protection: short-circuit and overload protection
Electrical / mechanical parameters
- Output mode: NPN NO
- Action mode: Light ON
- Cable length: 1.5 m
Recommended applications
- Electronics (3C) industry
- Automated parking systems
- Logistics and warehousing
