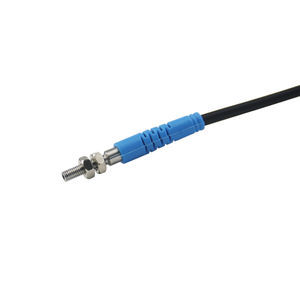

Fiber optic sensor head CX3-DE5L130N1
Add to favorites
Compare this product
Description
Product
Main features
Technical specifications
Mechanical / Electrical parameters
Summary / specifications

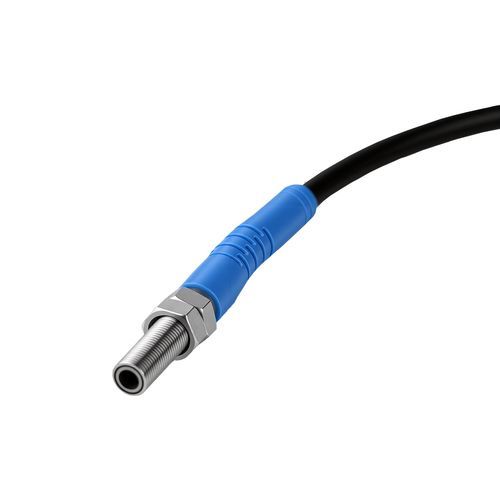

- CX3 series laser fiber-optic sensor, model CX3-DE5L130N1
Main features
- Form factor: M5 threaded, straight
- Detection principle: diffuse reflection
- Light source: laser
- Detection range: 10–130 mm
- Spot diameter: approx. Ø2 mm
- Output: NPN NO
Technical specifications
- Protection rating: IP65
- Connection: Ø3.8 mm PVC cable, 1.5 m
- Operating temperature: 0–50 °C
- Housing material: stainless steel
Mechanical / Electrical parameters
- Supply voltage: DC 12–24 V
- Operating mode: Light ON
- Response frequency: 100 Hz
- Signal type: switching
- Current consumption: < 10 mA
- Circuit protection: short-circuit and overload protection
- Load current: 120 mA
Summary / specifications
- Light source: laser
- Structure: M5 threaded, straight
- Range: 10–130 mm
- Spot: approx. Ø2 mm
- Output: NPN NO
- Ingress protection: IP65; cable 1.5 m; stainless steel housing
