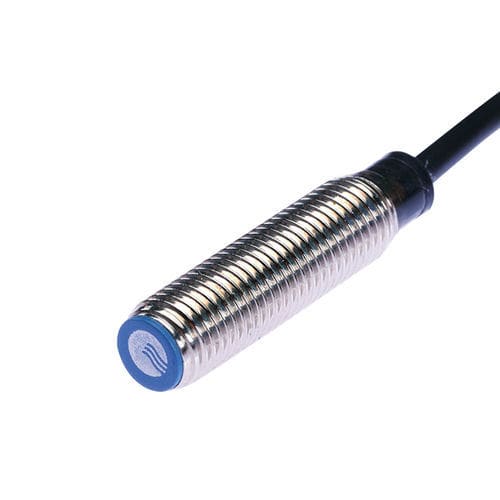

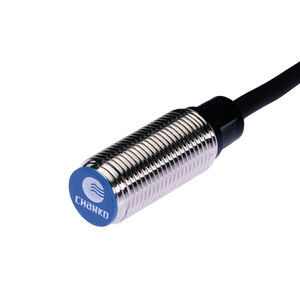

Inductive proximity sensor CL08-RF1.5DN1cylindricalM8with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M8
- Output signal
- with switching function, NPN
- Mounting
- flush
- Material
- plastic, brass
- Protection level
- IP67
- Other characteristics
- 3-wire
- Measuring range
0.15 cm
(0.06 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product overview
Key features
Technical specifications
Mechanical / electrical parameters
Operating environment
Accessories & documentation
Characteristics / technical summary
- Series: CL08 inductive proximity sensors
- Model: CL08-RF1.5DN1
- Type: Standard
- Sensing distance: 1.5 mm
- Housing: cylindrical, M8
- Detection principle: inductive
- Output: NPN NO (normally open)
- Cable length: 2 m
Key features
- Sensing distance 1.5 mm for reliable metal detection
- M8 cylindrical housing for compact flush mounting
- NPN NO output, three-wire DC connection
- Response frequency 1000 Hz; response time 500 µs
- Protection rating IP67 for dust and water resistance
- Built-in short-circuit and power surge protection
Technical specifications
- Product type: Standard
- Sensing distance: 1.5 mm
- Housing size: M8 (cylindrical)
- Detection principle: Inductive
- Cable length: 2 m (molded cable)
- Sensing direction: frontal
- Target material: metal (standard test piece: iron 8×8×1 mm)
- Hysteresis: <10% of sensing distance
- Temperature drift: within ±10% over -25 to +70 °C relative to +23 °C
- Materials: housing brass nickel-plated; sensing face heat-resistant ABS; cable PVC
Mechanical / electrical parameters
- Output type: NPN NO
- Supply voltage: DC 12–24 V
- Power connection: DC three-wire
- Protection: IP67
- Connection: molded cable
- Signal type: switching
- Operating mode: normally open
- Mounting: flush/embedded
- Current consumption: <35 mA
- Indicator: red output LED
- Protection circuits: short-circuit protection, surge protection
- Voltage influence: <±1% change in sensing distance within ±15% supply variation
- Load current: <200 mA
- Insulation resistance: >50 MΩ (DC 500 V)
- Shock resistance: 500 m/s², 3 times each on X, Y, Z
- Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, 2 h each X, Y, Z
- Weight: approx. 32 g
Operating environment
- Operating temperature: -25 to +70 °C
Accessories & documentation
- Included accessories: 2 nuts, 1 serrated washer, inspection certificate
- Available documents (examples, no links): 3D model (.stp), User manual (PDF)
Characteristics / technical summary
- Target: metal objects (standard: iron 8×8×1 mm)
- IP67 protection suitable for industrial environments requiring sealing
- Flush/embedded mounting; brass nickel-plated housing; heat-resistant ABS sensing face
- Built-in short-circuit and surge protection for enhanced reliability
- 2 m molded cable for direct connection
