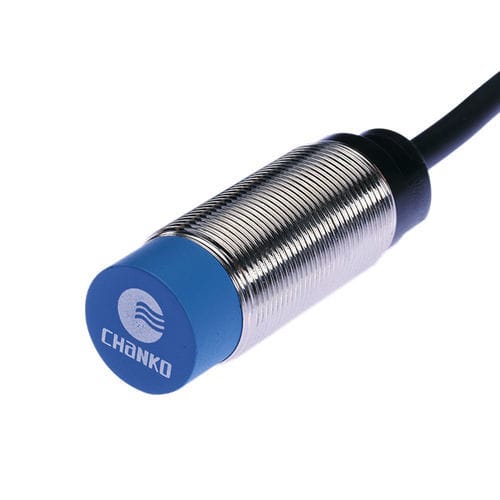

Inductive proximity sensor CL18-RN8DN1cylindricalM18with semiconductor output
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M18
- Output signal
- with switching function, NPN, with semiconductor output
- Supply voltage
- 24VDC, 12VDC
- Mounting
- non-flush
- Material
- plastic, brass, PVC
- Protection level
- IP67
- Other characteristics
- 3-wire
- Measuring range
0.8 cm
(0.31 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product overview
Key specifications
Mechanical / electrical parameters
Operating environment
Characteristics / technical specifications
- Product type: Standard inductive proximity sensor
- Sensing distance: 8 mm
- Shape: Cylindrical (M18)
- Sensing principle: Inductive
- Output: NPN NO (normally open)
Key specifications
- Cable length: 2 m (moulded cable)
- Sensing direction: Face
- Response frequency: 500 Hz
- Response time: 1 ms
- Detectable targets: Metal
- Accessories: 2 nuts, 1 tooth washer, inspection certificate
- Hysteresis: <10% of sensing distance
- Standard target: Iron 24×24×1 mm
- Temperature drift: Within ±10% referenced to +23°C over -25 to +70°C
- Materials: Housing brass nickel-plated; sensing face heat-resistant ABS; cable PVC
Mechanical / electrical parameters
- Output type: NPN NO
- Supply voltage: DC 12–24 V
- Supply method: DC three-wire
- Protection rating: IP67
- Connection: Moulded cable
- Signal type: Switching
- Switching mode: Normally open
- Mounting: Non-flush
- Current consumption: <35 mA
- Indicator: Red output LED
- Protection circuits: Short-circuit protection, surge protection
- Voltage influence: Within ±15% of rated supply, sensing distance change within ±1%
- Load current: <200 mA
- Insulation resistance: >50 MΩ (DC 500 V)
- Shock resistance: 500 m/s in X, Y, Z directions, 3 times
- Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
- Vibration resistance: 10–55 Hz double amplitude 1.5 mm, X, Y, Z directions, 2 h
- Weight: Approx. 93 g
Operating environment
- Operating temperature: -25 ~ +70 °C
Characteristics / technical specifications
- Model: CL18-RN8DN1
- Series: CL18
- Sensing distance: 8 mm
- Size: M18 (cylindrical)
- Principle: Inductive
- Output: NPN normally open (NO)
- Supply: DC 12–24 V, three-wire
- Cable: Moulded, 2 m, PVC
- Protection: IP67
- Response frequency / time: 500 Hz / 1 ms
- Current consumption: <35 mA; Load current: <200 mA
- Indicator: Red output LED
- Protection: Short-circuit and surge protection
- Operating temperature: -25 ~ +70 °C; temperature drift within ±10% (ref. +23 °C)
- Materials: Brass nickel-plated housing; heat-resistant ABS sensing face
- Standard target: Iron 24×24×1 mm; hysteresis <10%
- Weight: ≈93 g
