Inductive proximity sensor CL30-RN15DN1
cylindricalM30NPN

Inductive proximity sensor - CL30-RN15DN1 - CHANKO SENSOR - cylindrical / M30 / NPN

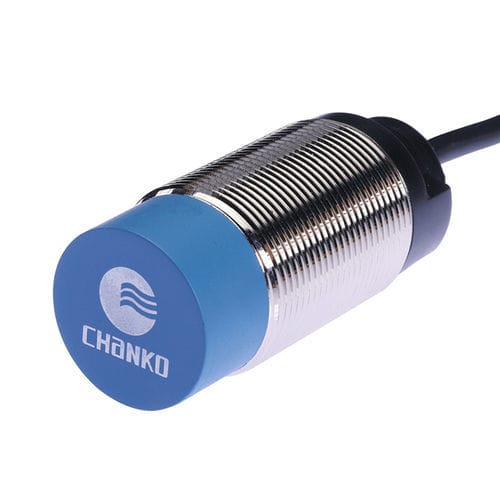

Inductive proximity sensor - CL30-RN15DN1 - CHANKO SENSOR - cylindrical / M30 / NPN
Inductive proximity sensor - CL30-RN15DN1 - CHANKO SENSOR - cylindrical / M30 / NPN - image - 2
Inductive proximity sensor - CL30-RN15DN1 - CHANKO SENSOR - cylindrical / M30 / NPN - image - 3
Inductive proximity sensor - CL30-RN15DN1 - CHANKO SENSOR - cylindrical / M30 / NPN - image - 4
Add to favorites
Compare this product

Characteristics

Technology
inductive
Shape
cylindrical
Diameter
M30
Output signal
NPN
Electrical connection
bare wires
Supply voltage
24VDC, 12VDC
Mounting
non-flush
Material
brass
Protection level
waterproof
Applications
for food industry applications, for the pharmaceutical industry, for the food and beverage industry, for automatic doors, for conveyor, for welding, for the semiconductor industry, for condition monitoring
Other characteristics
with LED light, 3-wire
Measuring range

Max.: 15 mm
(0.59 in)

Min.: 0 mm
(0 in)

Process temperature

Max.: 70 °C
(158 °F)

Min.: -25 °C
(-13 °F)

Description

Product overview
  • Series: CL30 series inductive proximity sensor
  • Model: CL30-RN15DN1
  • Type: Standard
  • Detection distance: 15 mm
  • Housing shape: Cylindrical
  • Detection principle: Inductive
  • Housing size: M30
  • Output: NPN, Normally Open (NO)


Technical specifications
  • Cable length: 2 m
  • Detection direction: Frontal
  • Response frequency: 500 Hz
  • Response time: 1 ms
  • Target object: Metal
  • Accessories: Certificate of conformity
  • Hysteresis: < 10% of sensing distance
  • Standard test object: Iron 45×45×1 mm
  • Temperature drift: Within ±10% from -25 to +70 °C referenced to +23 °C


Performance parameters
  • Operating frequency: 500 Hz
  • Response time: 1 ms
  • Hysteresis: <10% of sensing distance
  • Standard target: Iron 45×45×1 mm
  • Temperature drift: ±10% over -25 to +70 °C (ref. +23 °C)


Materials and construction
  • Housing: Nickel-plated brass
  • Sensing face: Heat-resistant ABS
  • Cable: PVC


Mechanical / electrical parameters
  • Output type: NPN, Normally Open (NO)
  • Supply voltage: DC 12–24 V
  • Power connection: 3-wire DC
  • Ingress protection: IP67
  • Connection: Molded cable
  • Signal type: Switching
  • Operating mode: Normally open
  • Mounting: Non-flush (non-embedded)
  • Current consumption: < 35 mA
  • Indicator: Red output LED
  • Protection circuits: Short-circuit and surge protection
  • Voltage effect: Within ±1% detection distance change for ±15% supply variation
  • Load current: < 200 mA
  • Insulation resistance: > 50 MΩ (DC 500 V)
  • Shock resistance: 500 m/s in X, Y, Z directions, 3 times
  • Dielectric strength: AC 1000 V 50/60 Hz 1 min (live parts to housing)
  • Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z 2 h
  • Weight: approx. 156 g


Operating environment
  • Operating temperature: -25 to +70 °C


Accessories & documentation
  • Included: Certificate of conformity
  • Documentation: Product manual available


Features / applications
  • Designed for metal target detection; standard test piece: iron 45×45×1 mm


Technical summary
  • Series: CL30 series
  • Model: CL30-RN15DN1
  • Sensing distance: 15 mm
  • Housing size: M30
  • Output: NPN, Normally Open (NO)
  • Supply: DC 12–24 V
  • Cable length: 2 m
  • Response time: 1 ms
  • Ingress protection: IP67
  • Materials: Housing nickel-plated brass; sensing face heat-resistant ABS; cable PVC
