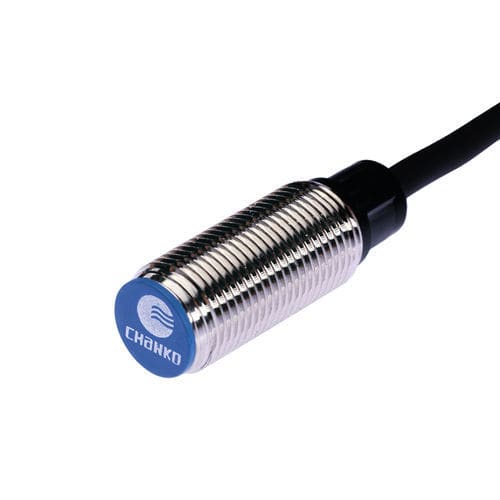

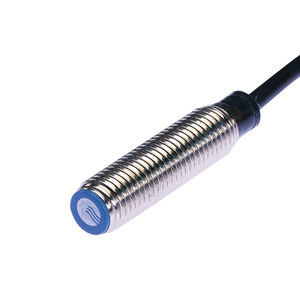

Inductive proximity sensor CL12-RF2DN1cylindricalM12NPN
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- NPN
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- flush
- Material
- brass, PVC
- Protection level
- IP67
- Other characteristics
- 3-wire
- Measuring range
0.2 cm
(0.08 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product overview
Mechanical / Electrical specifications
Operating environment
Documentation & accessories
Technical summary
- Model: CL12-RF2DN1
- Series: CL12
- Product type: Standard inductive proximity sensor
- Sensing distance: 2 mm
- Housing form: M12 cylindrical
- Sensing principle: Inductive
- Output: NPN NO (normally open)
- Cable length: 2 m (molded cable)
- Sensing face: Front
- Response frequency: 600 Hz
- Response time: 800 μs
- Detectable targets: Metallic objects (standard target: Fe 12×12×1 mm)
- Hysteresis: less than 10% of sensing distance
- Temperature drift: within ±10% over -25 to +70 °C (reference +23 °C)
- Materials: Nickel-plated brass housing; heat-resistant ABS sensing face; PVC cable
- Brand: 长江传感
Mechanical / Electrical specifications
- Output type: NPN NO
- Supply voltage: DC 12–24 V
- Wiring: DC three-wire
- Ingress protection: IP67
- Connection: Molded cable
- Signal type: Discrete switch
- Operating mode: Normally open
- Mounting: Flush (built-in)
- Current consumption: ≤35 mA
- Indicator: Red output LED
- Protection: Short-circuit and surge protection
- Voltage influence: ±1% detection change within ±15% supply variation
- Load current: ≤200 mA
- Insulation resistance: ≥50 MΩ (DC 500 V)
- Shock resistance: 500 m/s², 3 times each X/Y/Z
- Dielectric strength: AC 1000 V 50/60 Hz for 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, double amplitude 1.5 mm, 2 h each X/Y/Z
- Weight: approx. 54 g
Operating environment
- Operating temperature: -25 to +70 °C
Documentation & accessories
- Accessories: 2 nuts, 1 lock washer, inspection certificate
- 3D model (STP) and user manual (PDF) available for download
Technical summary
- Model: CL12-RF2DN1
- Sensing distance: 2 mm
- Housing: M12 cylindrical, flush mounting
- Output: NPN NO, DC three-wire, load ≤200 mA
- Supply: DC 12–24 V (±15% supply variation → detection ±1%)
- Ingress protection: IP67
- Response frequency / time: 600 Hz / 800 μs
- Cable: 2 m molded
- Materials: Nickel-plated brass housing, heat-resistant ABS face, PVC cable
