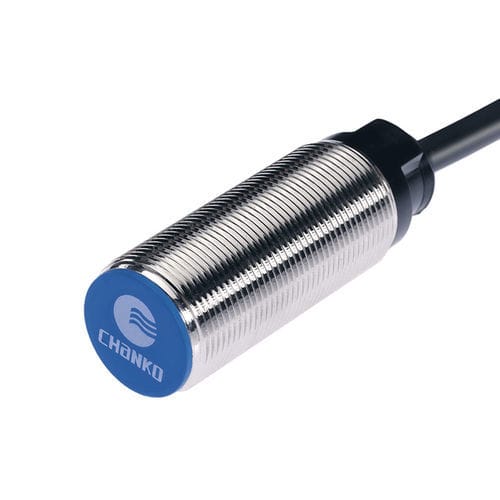

Inductive proximity sensor CL18-RF5DN1cylindricalM18with switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M18
- Output signal
- with switching function, NPN
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- flush
- Material
- plastic, brass, PVC
- Protection level
- IP67
- Other characteristics
- with LED light, 3-wire
- Measuring range
0.5 cm
(0.2 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product
Main features
Electrical / Mechanical parameters
Environmental
Applications / Specifications
- Inductive proximity sensor CL18-RF5DN1 — cylindrical M18 housing, sensing distance 5 mm, NPN normally open (NO)
Main features
- Type: Standard
- Sensing distance: 5 mm (metal targets)
- Housing: M18, cylindrical
- Detection principle: Inductive
- Output: NPN normally open (NO)
- Cable: Molded cable, 2 m
- Installation: Flush / embeddable
Electrical / Mechanical parameters
- Supply voltage: DC 12–24 V
- Power supply: 3-wire DC
- Operating current: < 35 mA
- Max load current: ≤ 200 mA
- Response frequency: 600 Hz
- Response time: 800 μs
- Protection rating: IP67
- Connection: Molded cable
- Signal type: Switching
- Indicator: Red output LED
- Protection circuits: Short-circuit and surge protection
- Insulation resistance: ≥ 50 MΩ (DC 500 V)
- Withstand voltage: AC 1000 V, 1 min between live parts and housing
- Shock resistance: 500 m/s², 3 shocks in X, Y, Z
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, 2 h per axis
- Weight: approx. 93 g
Environmental
- Operating temperature: -25 to +70 °C
- Temperature drift: Within ±10% over -25 to +70 °C compared to +23 °C
Applications / Specifications
- Series: CL18
- Standard target: Iron 18 × 18 × 1 mm
- Materials: Nickel-plated brass housing; heat-resistant ABS sensing face; PVC cable
- Hysteresis: < 10% of sensing distance
- Accessories: 2 nuts, 1 internal tooth washer, certificate
