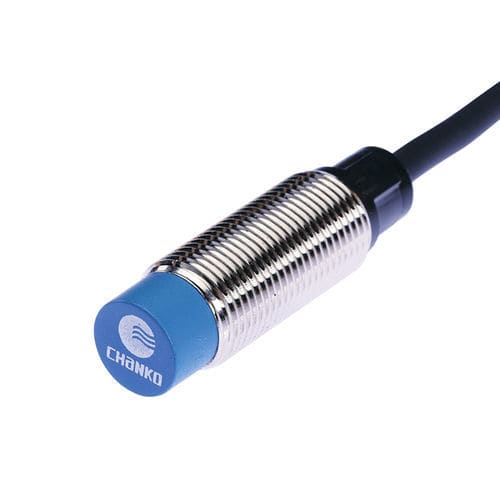

Product name- Manufacturer: CHANKO
- Model: CL12-RN4DN1
- Series: CL12 series Standard Inductive Proximity Sensors
Main features- Type: Standard
- Sensing distance: 4 mm
- Body: Cylindrical (M12)
- Detection principle: Inductive
- Output: NPN NO
- Cable length: 2 m
- Sensing direction: Face
- Switching frequency: 500 Hz
- Response time: 1 ms
- Target: Metallic objects
- Hysteresis: ≤10% of sensing distance
- Standard target: Fe 12×12×1 mm
- Temperature drift: within ±10% of sensing distance between -25 and +70 °C (reference +23 °C)
- Materials: Housing nickel-plated brass; sensing face heat-resistant ABS; cable PVC
Mechanical / electrical parameters- Output: NPN NO
- Supply voltage: DC 12–24 V
- Wiring: DC three-wire
- Protection class: IP67
- Connection: Molded cable
- Signal type: Switch output
- Operating mode: Normally open
- Mounting: Non-flush
- Current consumption: ≤35 mA
- Indicator: Red output LED
- Protection circuit: Short-circuit and surge protection
- Voltage influence: sensing distance variation ≤±1% within ±15% supply variation
- Load current: ≤200 mA
- Insulation resistance: ≥50 MΩ (DC 500 V)
- Shock resistance: 500 m/s², X/Y/Z 3 times
- Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z 2 h
- Weight: approx. 52 g
Operating environment- Ambient temperature: -25 to +70 °C
Accessories- Mounting nuts ×2
- Tooth lock washer ×1
- Certificate
Recommended applications- 3C electronics
- Automated parking systems
- Logistics and warehousing
DocumentationTechnical specifications- Type: Standard
- Sensing distance: 4 mm
- Thread size: M12
- Output: NPN NO
- Supply: DC 12–24 V
- Protection: IP67
- Cable length: 2 m
- Switching frequency: 500 Hz
- Response time: 1 ms
- Mounting: Non-flush
- Current consumption:
- Load current:
- Weight: approx. 52 g
- Materials: nickel-plated brass housing, heat-resistant ABS face, PVC cable
- Temperature range: -25 to +70 °C
