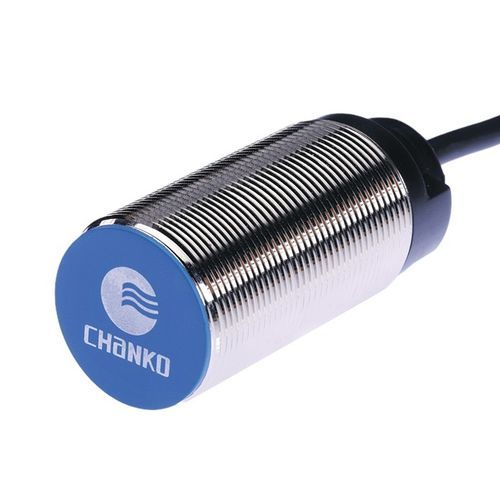

Inductive proximity sensor CL30-RF10DN1
cylindricalM30with switching function

Inductive proximity sensor - CL30-RF10DN1 - CHANKO SENSOR - cylindrical / M30 / with switching function
Inductive proximity sensor - CL30-RF10DN1 - CHANKO SENSOR - cylindrical / M30 / with switching function
Add to favorites
Compare this product

Characteristics

Technology
inductive
Shape
cylindrical
Diameter
M30
Output signal
with switching function, NPN
Electrical connection
bare wires
Supply voltage
DC, 24VDC, 12VDC
Mounting
flush
Material
plastic, brass, PVC
Applications
industrial
Other characteristics
non-contact, 3-wire
Measuring range

1 cm
(0.39 in)

Process temperature

Max.: 70 °C
(158 °F)

Min.: -25 °C
(-13 °F)

Description

Product name
CL30 series inductive proximity sensor, model CL30-RF10DN1. Brand: 长江传感

Key features
  • Product type: Standard
  • Detection distance: 10 mm
  • Body: Cylindrical (M30)
  • Sensing principle: Inductive
  • Output: NPN NO (normally open)
  • Cable length: 2 m


Technical specifications
  • Detection direction: Frontal
  • Response frequency: 500 Hz
  • Response time: 1 ms
  • Target material: Metal
  • Accessory: Certificate of conformity
  • Hysteresis: <10% of detection distance
  • Standard test object: Iron 30 × 30 × 1 mm
  • Temperature drift: Within ±10% of nominal detection distance from -25 to +70 °C (relative to +23 °C)
  • Materials: Housing — nickel-plated brass; sensing face — heat-resistant ABS; cable — PVC


Mechanical / Electrical parameters
  • Output type: NPN NO
  • Supply voltage: DC 12–24 V
  • Wiring: DC three-wire
  • Protection rating: IP67
  • Connection: Molded cable
  • Signal type: Switching
  • Operating mode: Normally open
  • Mounting: Flush/embedded
  • Current consumption: <35 mA
  • Indicator: Red output LED
  • Protection circuits: Short-circuit protection, surge protection
  • Voltage influence: Detection distance change within ±1% for ±15% supply variation
  • Load current: <200 mA
  • Insulation resistance: >50 MΩ (DC 500 V)
  • Shock resistance: 500 m/s, X/Y/Z directions, 3 times each
  • Dielectric strength: AC 1000 V, 50/60 Hz, 1 min (live parts vs. housing)
  • Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z directions, 2 h each
  • Weight: Approx. 156 g


Operating environment
  • Operating temperature: -25 ~ +70 °C


Recommended applications
  • 3C electronics manufacturing
  • Automated parking systems
  • Logistics and warehousing


Technical summary
  • Type: Standard inductive proximity sensor
  • Detection distance: 10 mm (iron)
  • Thread/size: M30
  • Output: NPN NO, three-wire DC
  • Ingress protection: IP67
