Diaphragm vacuum pump SE series
oil-free110VAC230VAC

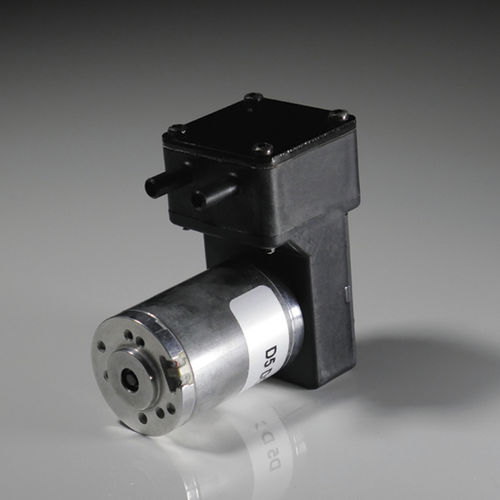

Diaphragm vacuum pump - SE series - CHARLES AUSTEN PUMPS LTD / BLUEDIAMOND PUMPS INC - oil-free / 110VAC / 230VAC
Diaphragm vacuum pump - SE series - CHARLES AUSTEN PUMPS LTD / BLUEDIAMOND PUMPS INC - oil-free / 110VAC / 230VAC
Diaphragm vacuum pump - SE series - CHARLES AUSTEN PUMPS LTD / BLUEDIAMOND PUMPS INC - oil-free / 110VAC / 230VAC - image - 2
Add to favorites
Compare this product

Characteristics

Technology
diaphragm
Lubrication
oil-free
Supply voltage
110VAC, 230VAC, 12VAC, 240VAC
Number of stages
single-stage
Applications
for medical applications, for the chemical industry, for gas, OEM, for fuel cells, air sampling
Other characteristics
compact, low-noise level, compressor, chemical-resistant, mini, brushless DC
Ultimate vacuum

190 mbar
(2.76 psi)

Flow rate

6 l/min
(1.59 us gal/min)

Length

49 mm
(2 in)

Width

80 mm
(3.15 in)

Height

46 mm
(1.81 in)

Weight

2 kg
(4.41 lb)

Description

Clean oil free vacuum and pressure source in a very quiet, compact unit. • Lightweight components, slim line design and low operating current - ideal for applications where space is at a premium. • Models can be upgraded with an optional variety of materials resistant to a wide range of corrosive gases and vapours • Optional brushless motor designed for continuous duty, low maintenance applications • Models available for use with AC or DC supply.
