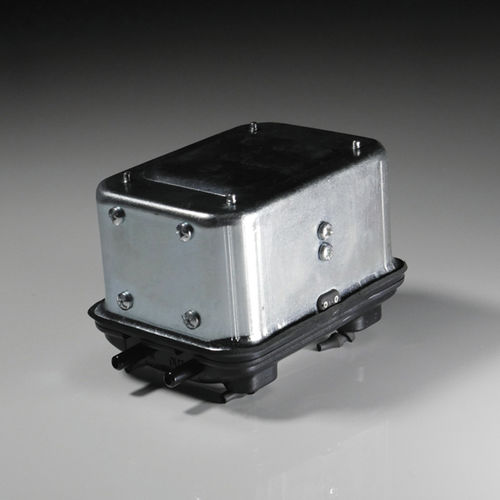

diaphragm vacuum pump / lubricated / single-stage / compact
LD DM5 (S)

{{requestButtons}}

Characteristics

  • Technology:

    diaphragm

  • Lubrication:

    lubricated

  • Number of stages:

    single-stage

  • Other characteristics:

    compact

  • Applications:

    for gas

  • Flow rate:

    8 l/min (2.11 us gal/min)

  • Ultimate vacuum:

    800 mbar (11.6 psi)

Description

The simple yet efficient pumping principle uses a magnetically operated
diaphragm. This action flexes a diaphragm at one, or both ends of the
connecting rod within a totally sealed pumping chamber. This eliminates
sliding parts keeping wear, tear and power consumption to a minimum.
Applications include: Ripple beds, Cuff inflation, Physiotherapy, Foot spa's,
Odour neutralisers, Fuel cell manufacture, Air sampling

• Max Flow: 10.0 l/min
• Max Vacuum: 880 mbar
• Max Pressure: 0.2 bar
• Size: 97 x 77 x 59mm

Performance Standard Option
Diaphragm: EPDM
• 110V • 12V
• 230V

700 800 0 0
20
30
40
50

0.1 0.2 0.4
Vacuum (mbar) Pressure (bar)
Flow (litres/minute)

0.3

10

900

LD 15

• Max Flow: 15.0 l/min
• Max Vacuum: 760 mbar
• Max Pressure: 0.2 bar
• Size: 109 x 84 x 68mm

Performance Standard Option
Diaphragm: EPDM
• 110V • 12V
• 230V

700 800 0 0
20
30
40
50

0.1 0.2 0.4
Vacuum (mbar) Pressure (bar)
Flow (litres/minute)

0.3

10

900

LD 30

• Max Flow: 30.0 l/min
• Max Vacuum: 700 mbar
• Max Pressure: 0.2 bar
• Size: 131 x 110 x 80mm

Performance Standard Option
Diaphragm: EPDM
• 110V
• 230V

700 800 0 0
20
30
40
50

0.1 0.2 0.4
Vacuum (mbar) Pressure (bar)
Flow (litres/minute)

0.3

10

900

Features

Features
Features

All models are supplied with an inlet and outlet for vacuum and
pressure use.
Uses an electro magnetically operated diaphragm, which
eliminates sliding parts, keeping wear and tear minimal.
Housed in a robust alloy casing with exceptional output from a
small footprint.
Lightweight and compact design with anti vibration mounts.
