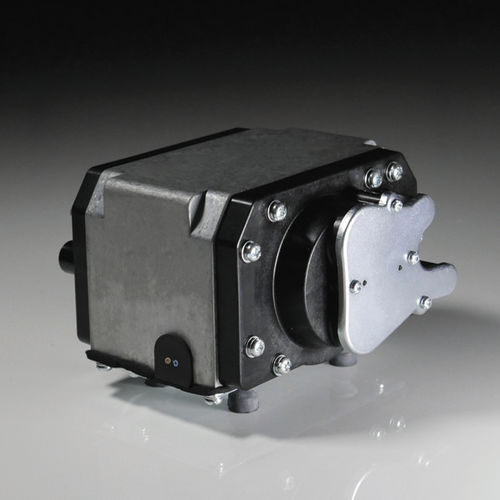

Diaphragm vacuum pump LD DBM30B
lubricated110VAC230VAC

diaphragm vacuum pump
diaphragm vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Lubrication
lubricated
Supply voltage
110VAC, 230VAC, 12VAC, 24VAC
Number of stages
single-stage
Applications
for gas
Other characteristics
compact, small
Ultimate vacuum

700 mbar
(10.15 psi)

Flow rate

58 l/min
(15.32 us gal/min)

Length

132 mm
(5 in)

Width

118 mm
(4.65 in)

Height

90 mm
(3.54 in)

Description

The simple yet efficient pumping principle uses a magnetically operated diaphragm. This action flexes a diaphragm at one, or both ends of the connecting rod within a totally sealed pumping chamber. This eliminates sliding parts keeping wear, tear and power consumption to a minimum. Applications include: Ripple beds, Cuff inflation, Physiotherapy, Foot spa's, Odour neutralisers, Fuel cell manufacture, Air sampling All models are supplied with an inlet and outlet for vacuum and pressure use. Uses an electro magnetically operated diaphragm, which eliminates sliding parts, keeping wear and tear minimal. Housed in a robust alloy casing with exceptional output from a small footprint. Lightweight and compact design with anti vibration mounts.
