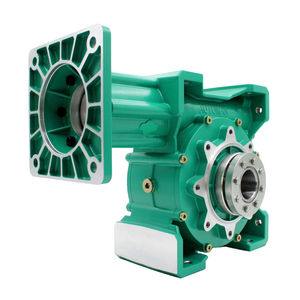

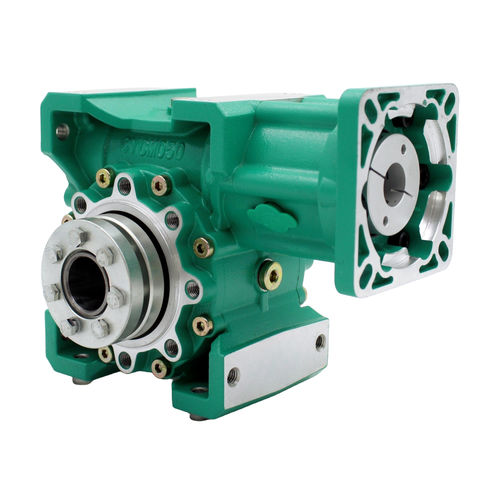

Worm gearbox CYCM 050
right anglesolid-shaftdual-shaft

worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
Add to favorites
Compare this product


Characteristics

Type
worm
Shaft orientation
right angle
Shaft configuration
solid-shaft, dual-shaft, multiple-output
Torque
50 - 100 Nm
Number of stages
single-stage, dual-stage
Performance
high-precision, high-efficiency, low-noise, high-performance, maintenance-free, low-backlash
Applications
transmission, for machinery, for robots, for industrial applications, for material handling equipment, for textiles, centrifuge, fan, for servo motors, for mining applications, for elevators, for doors, for milling applications, for heavy-duty applications, for hoist units, for marine applications, winch, for lifting applications, for conveyors, for machines
Other characteristics
high-quality, for grinding machines, cutting, for pumps, for mixers, for the crane and lifting industry, for motor coupling, for mixing trucks, motor
Gear ratio

Min.: 5 unit

Max.: 80 unit

Description

CYCM series of worm gearbox enjoys 25% OFF to celebrate our 30th anniversary, is with high precision 0.5-2 Arc minutes and designed for servo motors , cover the whole industry, and suitable for repeated positioning, precision indexing and other intelligent industrial control fields. They are widely used in high end industries such as aerospace, robotics and chip semiconductors. ABB, SIEMES and other high-end motors can be installed together with our gearbox to be sold. Key features • Model No.:CYCM 050 • 0.5-2 Arc minutes high precision • Factory outlet ,provide video factory inspection • Speed ratio range:5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1 • Input dimension: ∅14/19/20/22mm • Locking disc hole output : ∅25mm • Output hole: ∅25mm • Output shaft: ∅35mm • Flange: 85*85mm • Rated Input Torque: 1.2 ~ 17 N.m • Rated output Torque: 51~ 90N.m • Rated Input motor power :0.37kw-3.2Kw • Die-cast aluminum alloy housing • Worm wheel adopts high quality Tin Bronze • Certification: RoHS/CE/IAF/CNAS /ISO9001/45001/14001 • Mounting orientation: B3 B6 B7 B8 V5 V6 • With 8 different output ways, C1, C2, CR, 2C, ASL, ASR, HIHO,AB attached • Can be customized according to customer needs • Delivery time: 7 days • Approximate gross weight: 5 KGS Key benefits • Low temperature rise • Low noise, smooth operation • Long service life and more durability • Energy saving and high efficiency • Can be installed in any position and in all directions • Built-in fully synthetic lubricant, no breather plug, fully sealed and maintenance-free ,no need to add oil for whole lifes • Ultra-high load, 150% higher than products with the same center distance and the same reduction ratio.
