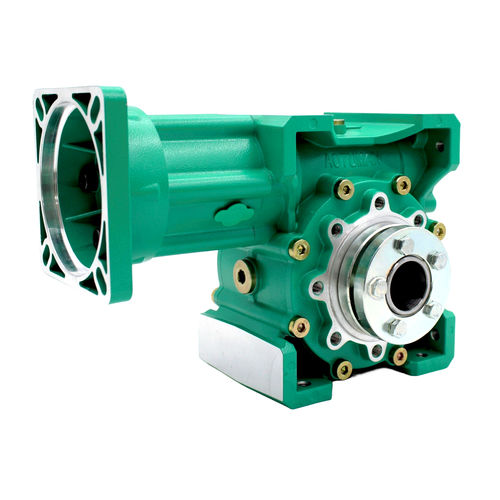

Worm gearbox CYCM063

right anglesolid-shaftdual-shaft

CYCM series of worm gearbox with high precision 0.5-2 Arc minutes are designed for servo motors (C1, C2, CR, 2C, ASL, ASR, HIHO) cover the whole industry, and are suitable for precise repetitive positioning, precision indexing and other intelligent industrial control fields. They are widely used in high end industries such as aerospace, robotics and chip semiconductors. ABB, SIEMES and other high-end motors can be installed together with our gearbox to be sold. Key features • 0.5-2 Arc minutes high precision • Factory outlet • Speed ratio range:5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1 • Input dimension: ∅14/19/20/22/24mm • Locking disc hole output : ∅30mm • Output hole: ∅30mm • Output shaft: ∅40mm • Flange: 130*130mm • Rated Input Torque: 2 ~ 34 N.m • Rated output Torque: 104~ 175 N.m • Die-cast aluminum alloy housing • Worm wheel adopts high quality tin bronze • Certification: RoHS/CE/IAF/CNAS /ISO9001/45001/14001 • Mounting orientation: B3 B6 B7 B8 V5 V6 • Can be customized according to customer needs • Delivery time: 7 days • Approximate gross weight: 8 KGS Key benefits • Low temperature rise • Low noise, smooth operation • Long service life and more durability • Energy saving and high efficiency • Can be installed in any position and in all directions • Built-in fully synthetic lubricant, no breather plug, fully sealed and maintenance-free • Ultra-high precision, using orthogonal high precision worm wheel and worm shaft, backlash adjustable to 0.5-2 arc minutes to double the transmission precision. • Ultra-high load, 150% higher than products with the same center distance and the same reduction ratio.
