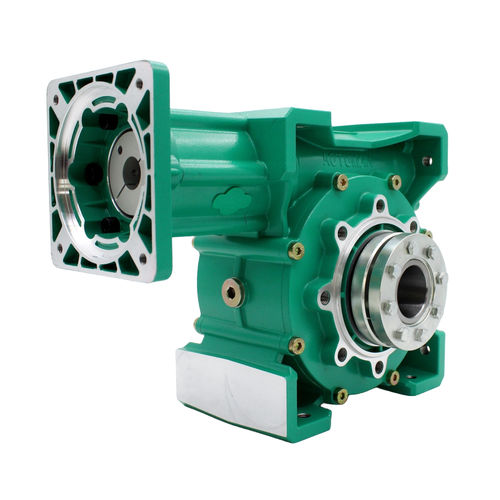

Worm gearbox CYCM90
right anglesolid-shaftdual-shaft

worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
Add to favorites
Compare this product


Characteristics

Type
worm
Shaft orientation
right angle
Shaft configuration
solid-shaft, dual-shaft, multiple-output
Torque
200 - 500 Nm
Number of stages
single-stage, dual-stage
Performance
high-precision, high-performance, low-noise, low-backlash, high-efficiency, maintenance-free
Applications
for industrial applications, transmission, for elevators, for hoist units, for servo motors, for robots, for heavy-duty applications, for conveyors, for milling applications, for lifting applications, fan, for material handling equipment, for machinery, for machines, for mining applications, centrifuge, winch, for textiles, for doors, for marine applications
Other characteristics
high-quality, for pumps, for motor coupling, for grinding machines, for mixers, for the crane and lifting industry, cutting, for mixing trucks, motor
Gear ratio

Max.: 80 unit

Min.: 5 unit

Description

CYCM series of worm gearbox enjoys 25% OFF to celebrate our 30th anniversary, is with high precision 0.5-2 Arc minutes and designed for servo motors covering the whole industry, and are suitable for precise repetitive positioning, precision indexing and other intelligent industrial control fields. They are widely used in high end industries such as aerospace, robotics and chip semiconductors. ABB, SIEMES and other high-end motors can be installed together with our gearbox to be sold. Key features •Model NO.:CYCM 090 • 0.5-2 Arc minutes high precision • Factory outlet ,provide video factory inspection • Speed ratio range:5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1 • Input dimension: ∅19/20/22/24/28mm • Locking disc hole output : ∅40mm • Output hole: ∅40mm • Output shaft: ∅50mm • Flange: 150*150mm • Rated Input Torque: 4.6 ~ 72.7 N.m • Rated output Torque: 232 ~ 460 N.m • Rated Input motor power : 1.5kw-14.5Kw • Die-cast aluminum alloy housing • Worm wheel adopts high quality Tin bronze • Certification: RoHS/CE/IAF/CNAS /ISO9001/45001/14001 • Mounting orientation: B3 B6 B7 B8 V5 V6 • With 8 different output ways, C1, C2, CR, 2C, ASL, ASR, HIHO,AB attached • Can be customized according to customer needs • Delivery time: 7 days • Approximate gross weight: 17 KGS Key benefits • Low temperature rise • Low noise, smooth operation • Long service life and more durability • Energy saving and high efficiency • Built-in fully synthetic lubricant, no breather plug, fully sealed and maintenance-free,no need to add oil for whole lifes • Ultra-high load, 150% higher than products with the same center distance and the same reduction ratio.
