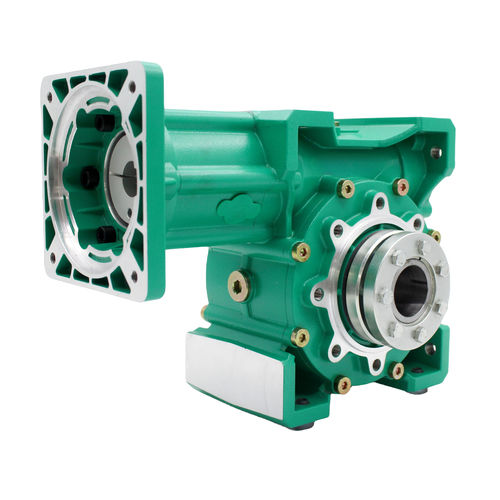

Worm gearbox CYCM75
right anglesolid-shaftdual-shaft

worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
Add to favorites
Compare this product


Characteristics

Type
worm
Shaft orientation
right angle
Shaft configuration
solid-shaft, dual-shaft, multiple-output
Torque
200 - 500 Nm, 100 - 200 Nm
Number of stages
single-stage, dual-stage
Performance
high-precision, high-performance, low-noise, low-backlash, high-efficiency, maintenance-free
Applications
for material handling equipment, transmission, for mining applications, fan, for servo motors, for robots, for heavy-duty applications, for hoist units, for milling applications, for elevators, for machinery, for textiles, for doors, for conveyors, for industrial applications, for lifting applications, for machines, centrifuge, winch, for marine applications
Other characteristics
high-quality, for pumps, for motor coupling, for grinding machines, for mixers, for the crane and lifting industry, cutting, for mixing trucks, motor
Gear ratio

Max.: 80 unit

Min.: 5 unit

Description

CYCM series of worm gearbox enjoys 25% OFF to celebrate our 30th anniversary, is with high precision 0.5-2 Arc minutes and designed for servo motors covering the whole industry, and suitable for repeated positioning, precision indexing and other intelligent industrial control fields. They are widely used in high end industries such as aerospace, robotics and chip semiconductors. ABB, SIEMES and other high-end motors can be installed together with our gearbox to be sold. Key features • Model No.:CYCM 075 • 0.5-2 Arc minutes high precision • Factory outlet ,provide video factory inspection • Speed ratio range:5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1 • Input dimension: ∅19/20/22/24/28mm • Locking disc hole output : ∅35mm • Output hole: ∅35mm • Output shaft: ∅45mm • Flange: 130*130mm • Rated Input Torque: 3.3 ~ 47.7 N.m • Rated output Torque: 150~ 260 N.m • Rated Input motor power :0.75kw-9.4Kw • Die-cast aluminum alloy housing • Worm wheel adopts high quality Tin bronze • Certification: RoHS/CE/IAF/CNAS /ISO9001/45001/14001 • With 8 different output ways, C1, C2, CR, 2C, ASL, ASR, HIHO,AB attached • Mounting orientation: B3 B6 B7 B8 V5 V6 • Can be customized according to customer needs • Delivery time: 7 days • Approximate gross weight: 12 KGS Key benefits • Low temperature rise • Low noise, smooth operation • Long service life and more durability • Energy saving and high efficiency • Built-in fully synthetic lubricant, no breather plug, fully sealed and maintenance-free,and no need to add oil for whole lifes • Ultra-high load, 150% higher than products with the same center distance and the same reduction ratio.
