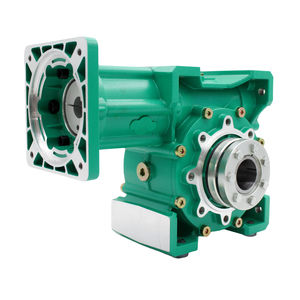

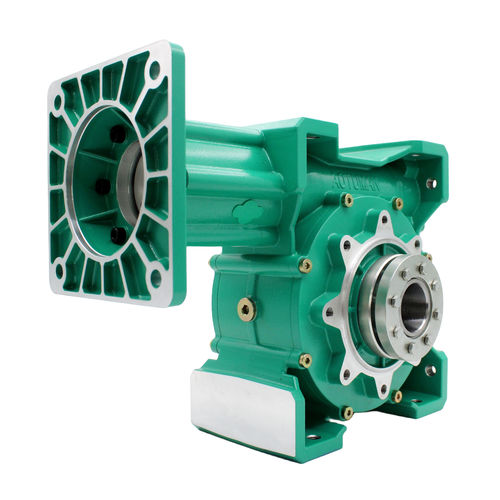

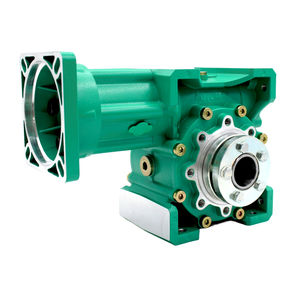

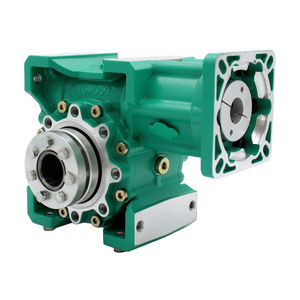

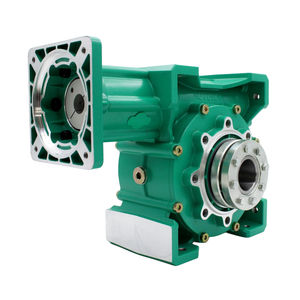

Worm gearbox CYCM110
right anglesolid-shaftdual-shaft

worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
worm gearbox
Add to favorites
Compare this product


Characteristics

Type
worm
Shaft orientation
right angle
Shaft configuration
solid-shaft, dual-shaft, multiple-output
Torque
200 - 500 Nm, 500 - 1000 Nm
Number of stages
single-stage, dual-stage
Performance
high-precision, high-performance, low-noise, low-backlash, high-efficiency, maintenance-free
Applications
for servo motors, transmission, for robots, for textiles, for heavy-duty applications, for conveyors, for mining applications, for hoist units, for industrial applications, for lifting applications, for doors, for milling applications, for machinery, centrifuge, fan, for material handling equipment, for machines, winch, for marine applications
Other characteristics
high-quality, for pumps, for motor coupling, for grinding machines, for mixers, for the crane and lifting industry, cutting, for mixing trucks, motor
Gear ratio

Max.: 80 unit

Min.: 5 unit

Description

CYCM series of worm gearbox enjoys 25% OFF to celebrate our 30th anniversary, is with high precision 0.5-2 Arc minutes and suitable for repeated positioning and other intelligent industrial control fields. They are widely used in high end industries . ABB, SIEMES and other high-end motors can be installed together with our gearbox to be sold. Key features • Model No.:CYCM 110 • 0.5-2 Arc minutes high precision • Factory outlet ,provide video factory inspection • Speed ratio range:5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1 • Input dimension: ∅22/24/28/32/35mm • Locking disc hole output : ∅45mm • Output hole: ∅45mm • Output shaft: ∅55mm • Rated Input Torque: 7.5 ~ 122.7 N.m • Output Torque: 380 ~ 730 N.m • Rated Input motor power :2.2kw-22.8Kw • Flange: 180*180mm • Mounting orientation: B3 B6 B7 B8 V5 V6 • Worm wheel adopts high quality Tin bronze • Certification: RoHS/CE/IAF/CNAS /ISO9001/45001/14001 • Mounting orientation: B3 B6 B7 B8 V5 V6 • With 8 different output ways, C1, C2, CR, 2C, ASL, ASR, HIHO,AB attached • Die-cast aluminum alloy housing • Worm wheel adopts high quality Tin Bronze • Certification: RoHS/CE/IAF/CNAS /ISO9001/45001/14001 • Can be customized according to customer needs • Delivery time: 7 days • Approximate gross weight: 28 KGS Key benefits • Low temperature rise • Low noise, smooth operation • Long service life and more durability • Energy saving and high efficiency • Built-in fully synthetic lubricant, no breather plug, fully sealed and maintenance-free,no need to add oil for whole lifes • Ultra-high load, 150% higher than products with the same center distance and the same reduction ratio.
