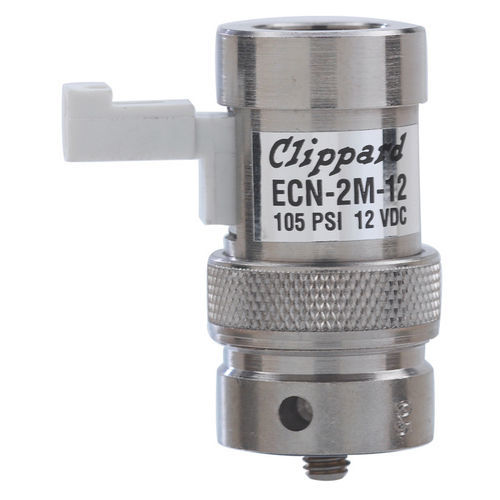

Direct-operated solenoid valve ECN-2M-122-wayNONC
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- NC, NO
- Medium
- air
- Body
- compact, manifold, nickel-plated brass
- Other characteristics
- standard, corrosion-resistant, in-line, with seal, plug
- DN
0.025 in
- Voltage
6 V, 12 V, 24 V
- Temperature
Max.: 180 °F
(82 °C)Min.: 32 °F
(0 °C)- Pressure
105 psi
Description
2-Way Elec Valve, Norm-Open, Mfld Mnted, 12 VDC
Additional Information
Accessories 2020 2021 EVB-2 EVB-3
Air Flow 0.9 scfm @ 100 psig (25 L/min @ 7 bar)
Body Material Nickel Plated Brass
Connection Type 0.25" Square Pin Connector
Connector AMP #103959-1
Connector P/N C2-RB18
Life Cycles Over 1 Billion
Manifolds EV Manifolds
Medium Clean, dry air (40 micron filter)
Mount Manifold Mount
Poppet Travel 0.007"
Port Size #10-32
Power Consumption 0.67 Watts
Pressure Range 28" Hg Vac. to 105 psig
Response Time 5 to 10 milliseconds (nominal)
Seals Nitrile
Series Standard
Temperature Range 32 to 180°F (0 to 82°C)
Valve Porting 2-Way Normally-Open
Voltage 12 VDC
