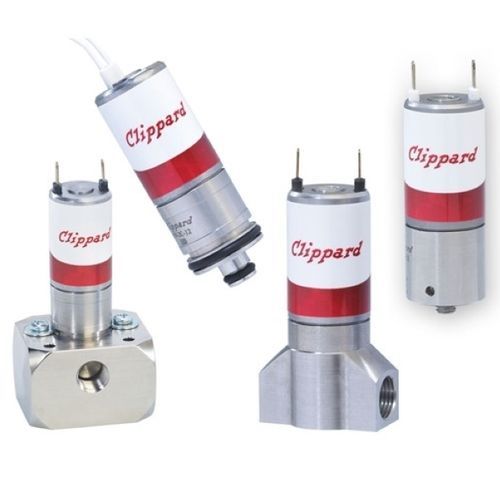

High flow rate solenoid valve DV series

direct-operated2/3-wayNO

Clippard electronic valves are precision-built utilizing Clippard's unique, patented valving principle. Designed as the next generation of the well-known and trusted original EV Series, the powerful DV Series is compact, quick and built to last—over 1,000,000,000+ cycles! With a solid, compact design and extremely high flow rates, these valves are well-suited for many applications in a variety of different industries including medical, analytical, packaging, manufacturing and more. DV Series Features *************** • High flow rate: 2-Way: up to 100 l/min 3-Way: up to 70 l/min fully ported • Industry standard for leak-free operation • Over 1,000,000,000+ cycles • Fast response time • Low heat rise/low power • Robust stainless steel "Spider" flat armature spring • Designed to accommodate large flows with more stroke Specifications *********** Valve Type: 2-Way or 3-Way, Normally-Closed or Normally-Open, Fully-Ported (3-Way) Medium: Compatible Fluids (40 micron filter recommended) Air Flow: - DV-2/DT-2: 100 l/min @ 7 bar/100 psig - DV-2-L/DT-2-L: 100 l/min @ 3.5 bar/50 psig - DV-3/DT-3: 70 l/min @ 7 bar/100 psig Pressure Range: Vac. to 7 bar/100 psig Power Consumption: 1.9 watts Mounting: Manifold, In-Line or Cartridge Style (inserts into a 3/4" bore) Ports: G1/8 or 1/8NPT (on in-line versions), M5 or #10-32 (on manifold mounted versions) Ambient Temperature Range: 0 to 55°C (32 to 130°F) at continuous duty Response: 10 to 15 milliseconds Electrical Connections: Spade Terminals or Wire Leads Operating Range: 95 to 125% of rated voltage Voltage: 12 or 24 VDC Wetted Materials: Ultem™, Stainless Steel, PPS Seal Material: Nitrile standard. FKM, EPDM, Silicone optional
