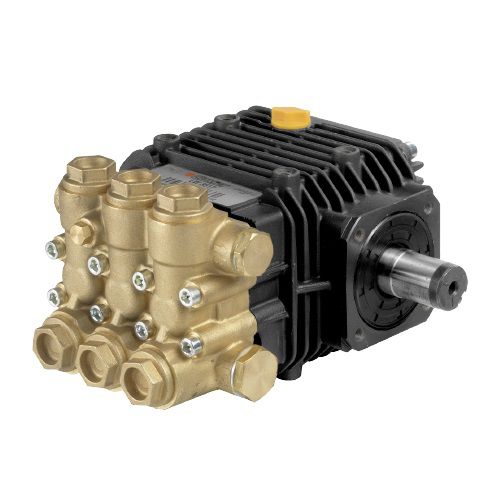

Piston pump LW series
wateroilwith electric motor

Piston pump - LW series - COMET Spa - water / oil / with electric motor
Piston pump - LW series - COMET Spa - water / oil / with electric motor
Piston pump - LW series - COMET Spa - water / oil / with electric motor - image - 2
Piston pump - LW series - COMET Spa - water / oil / with electric motor - image - 3
Piston pump - LW series - COMET Spa - water / oil / with electric motor - image - 4
Piston pump - LW series - COMET Spa - water / oil / with electric motor - image - 5
Piston pump - LW series - COMET Spa - water / oil / with electric motor - image - 6
Add to favorites
Compare this product

Characteristics

Technology
piston
Fluid
water, oil
Operation
with electric motor
Mobility
stationary
Domain
industrial
Material
stainless steel, aluminum, ceramic, bronze, brass, cast aluminum
Protection level
corrosion-resistant
Other characteristics
belt drive, triplex
Flow

Max.: 13.4 l/min
(3.53991 us gal/min)

Min.: 8 l/min
(2.11338 us gal/min)

Pressure

Max.: 172 bar
(2,494.649 psi)

Min.: 90 bar
(1,305.34 psi)

Power

Max.: 4 kW
(5.44 hp)

Min.: 2.2 kW
(2.99 hp)

Length

196 mm
(8 in)

Width

191 mm
(7.52 in)

Height

118 mm
(4.65 in)

Weight

4.8 kg, 6.1 kg
(10.58 lb, 13.45 lb)

Description

Brass Head Forged Bronze Connecting Rods with Lifetime Warranty Hardened Stainless Steel Piston Guides High Efficiency Stainless Steel Check Valves Abrasion Proof, Heat Resistant, Industrial Ceramic Plungers High Quality Buna- Textile Double-Sealing V-Packings Die-Cast, Anodized Aluminum Crankshaft-Fin Design for Optimal operating Temperature High Quality Oversized Ball Bearings Optimal Oil Bath for High Speed Operation S 24mm Solid Shaft for Belt Drive, Gearbox or Flex Couplers
