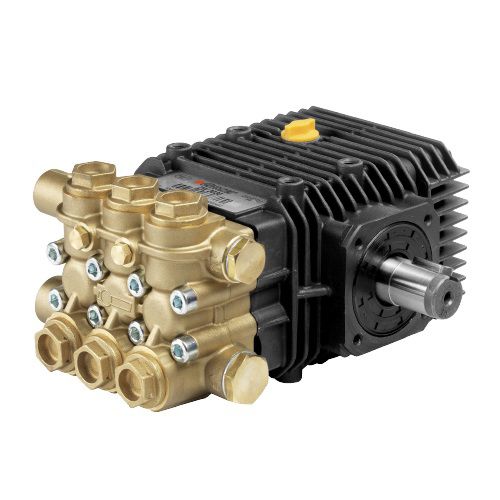

Plunger pump ZW serieswaterwith electric motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- plunger
- Fluid
- water
- Operation
- with electric motor
- Mobility
- stationary
- Domain
- industrial
- Applications
- test
- Material
- stainless steel, ceramic, brass, cast aluminum
- Protection level
- corrosion-resistant
- Other characteristics
- mechanical, double, triplex
- Flow
12.3 l/min, 15 l/min
(3.24932 us gal/min, 3.96258 us gal/min)- Pressure
152 bar, 207 bar
(2,204.574 psi, 3,002.281 psi)- Power
4 kW, 4.2 kW, 4.7 kW, 5.5 kW
(5.44 hp, 5.71 hp, 6.39 hp, 7.48 hp)- Length
228 mm
(9 in)- Width
201 mm
(7.91 in)- Height
119 mm
(4.69 in)- Weight
7.5 kg, 7.9 kg
(16.53 lb, 17.42 lb)
Description
Brass Head
Increased Fin Depth Increases Surface Area to Maximize Heat Dissipation
Stainless Steel Unitized Check Valves
Heat-Resistant Solid Ceramic Plungers Operating on Lubricated Packings
Reinforced Crankcase for Increased Load Capacity
Enlarged Crankcase Increases Oil Capacity for Better Lubrication and Lower Operating Temperatures
One-Piece Industrial-Grade Oversized Bronze Connecting Rods
Solid Shaft 24 mm for Belt Drive, Gearbox or Flex Couplers
