water pump / with electric motor / plunger / industrial
RW series

{{requestButtons}}

Characteristics

  • Media:

    water

  • Operation:

    with electric motor

  • Type:

    plunger

  • Domain:

    industrial

  • Other characteristics:

    triplex, lubricated, corrosion-resistant, mechanically-actuated, cast aluminum

  • Flow:

    11.4 l/min, 23.4 l/min (3.0116 us gal/min)

  • Pressure:

    Min.: 152 bar (2,204.574 psi)

    Max.: 276 bar (4,003.042 psi)

  • Power:

    Min.: 4.4 kW (5.98 hp)

    Max.: 9.6 kW (13.05 hp)

Description

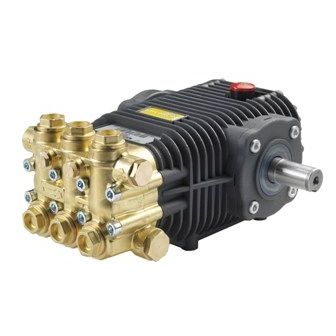

Triplex Pump has large oil capacity and can help dissipate heat and increase lubrication for elongated life. The device’s crankcase is made of die cast aluminium alloy which is anodized for safety from corrosion. Its brass head check valves are of stainless steel and are efficient in design. It features large working surface of brass rings on crankcase. The device is designed to prevent dust and dirt entering the piston area, however water exit is allowed. It has exclusive packing system which comes with special seals and bronze rings for superior packing life. Triplex Pumps comes with an oil vented dipstick crankcase completely surrounded by large fins. It helps in efficient cooling of oil and drastically reduces the operating temperature. Its two oil sight glasses o-ring sealing system between crankcase and back cover connecting rods are made from one piece bronze alloy.
