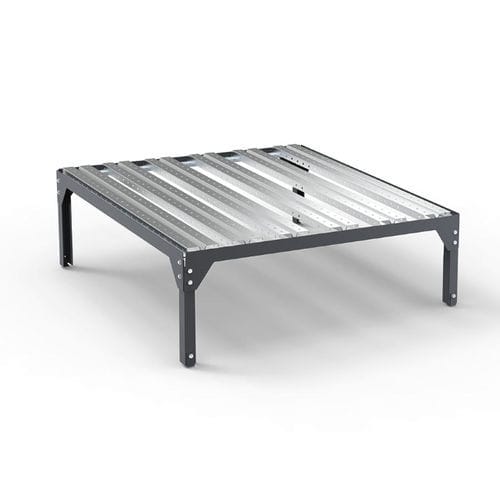

Metal support 003839

floor-mountedtilting

Description
The inclined support kit for tanks consists of a painted metal frame in anthracite grey and slats with galvanized combs. It enables placement of a tank above a containment sump in an inclined position to facilitate draining operations. For transport or when not in use, the unit can be disassembled to a compact package measuring 1300×170 mm with a height of 140 mm. Available to purchase with or without slats for tank support.

Main features

• Load capacity: 1000 KG
• Durable painted metal frame
• Easy to assemble and disassemble for transport and storage

Colors
RAL7016 + ZN

Item details (table)
ART. | L (mm) | P (mm) | H (mm) | LOAD CAPACITY | Option
003839 | 1300 | 1300 | 390 – 450 | 1000 KG | with slats
003761 | 1300 | 1300 | 390 – 450 | 1000 KG | without slats

Technical characteristics / specifications

• Structure: painted metal frame in anthracite grey
• Slats: slats with galvanized combs (option: with or without slats)
• Overall dimensions: L 1300 mm × P 1300 mm
• Usable height: 390 – 450 mm
• Transport dimensions (disassembled): 1300 × 170 mm, height 140 mm
• Nominal load capacity: 1000 kg
• Article codes: 003839 (with slats), 003761 (without slats)
• Finish: RAL7016 + zinc plating (ZN)
• Additional features: removable for compact transport and storage
