Drum spill pallet 002191

galvanised steelwith galvanized gridstackable

Brief description

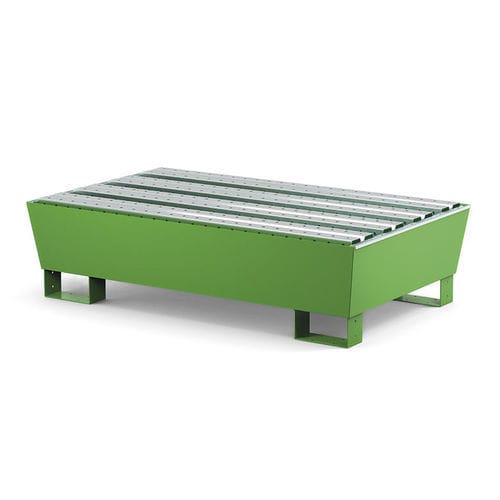

Conical spill containment tray with 200 L capacity, equipped with a comb and slatted support system for drums. Fork pockets located under the tray allow handling by pallet truck or forklift. Trays can be stacked during transport or storage to save space.

Use and compatibility
Suitable for collection of flammable liquids (GHS categories 1–3) and water pollutants (GHS categories 1–4). Features galvanized slats for supporting drums or tanks. Movable by forklift or by hand with optional wheel and handle kit.

Main features

• Capacity: 200 L
• Shape: conical
• Support system: combs and galvanized slats for drums/tanks
• Forkable (fork pockets for pallet truck/forklift)
• Stackable for storage and transport
• Handling: manual or by forklift; optional wheel and handle kit
• Colour: RAL 6018 + galvanized

Dimensions (mm) / Article
ART.: 002191
Dimensions (mm):
A: 1310
B: 800
C: 240
D: 100
Capacity: 200 L

Safety and compliance
Designed to comply with containment regulations: the tray must contain at least the greater of the volume of the largest container and 33% of the sum of the volumes of the containers placed on the tray.

Technical specifications

• Article code: 002191
• Nominal capacity: 200 L
• Dimensions (A x B x C x D): 1310 x 800 x 240 x 100 mm
• Shape: conical
• Material/finish: galvanized slats (ZN)
• Colour: RAL 6018 + ZN
• Chemical safety: suitable for flammable liquids GHS 1–3 and water pollutants GHS 1–4
• Handling: forkable; optional wheel and handle kit for manual handling
• Additional features: stackable, comb system for drum support
• Components protected by design and/or patent where indicated
