Drum spill pallet 008063

galvanised steelwith galvanized grid

Brief description

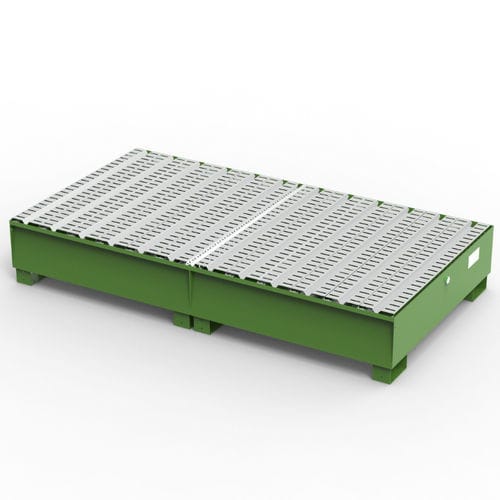

Modular containment sump for collection and retention of hazardous liquids, composed of two basins joined by a coupling kit to provide a total capacity of 800 L; equipped with a comb system and galvanized slatted supports for drum support. Lower forklift pockets allow movement by pallet truck or forklift.

Use and features
Suitable for collection of flammable liquids (GHS 1–3) and water pollutants (GHS 1–4). Movable by forklift; galvanized slats and comb system ensure correct positioning and support of drums and tanks.

Colours
RAL 6018 + ZN (galvanized)

Article details (table)
ART. | A (mm) | B (mm) | C (mm) | D (mm) | CAPACITY
008063 | 2400 | 1300 | 260 | 100 | 800 L

Technical notes
To verify capacity compliance, the sump must be able to contain at least the larger of the volume of the largest container and 33% of the sum of the volumes of the containers placed on the sump.

Warnings / Indications

• Components protected by Community design model and/or industrial invention patent.
• Suitable for collection of flammable and hazardous substances according to the indicated GHS classification.
• Equipped with galvanized slats for drum support; forkable for movement with forklift or pallet truck.

Characteristics / technical specifications

• Capacity: 800 L
• Structure: modular (two basins joined with coupling kit)
• Drum support: comb system and galvanized slatted supports
• Handling: lower fork pockets for pallet truck or forklift (forkable)
• Applications: collection of flammable liquids (GHS 1–3) and water pollutants (GHS 1–4)
• Article code: 008063
• Colour: RAL 6018 + galvanization (ZN)
