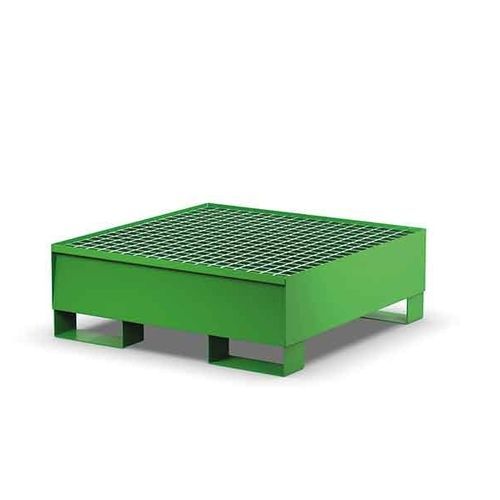

Drum spill pallet 014491

1-drumgalvanised steelwith galvanized grid

Short description
Containment sump with 205 L capacity, equipped with a galvanized grid to support a drum. Brackets under the sump facilitate movement with a pallet truck or forklift.

Intended use and main features

• Suitable for collection of flammable liquids (GHS categories 1–3) and substances hazardous to water (GHS 1–4).
• Movable by forklift or manually; optional wheel and handle kit available for manual handling.
• Galvanized slats/grid to support drums or IBCs.
• Forkliftable: brackets under the sump allow handling with pallet truck or forks.

Required capacity calculation
The sump must be able to contain at least the greater of the volume of the largest container and 33% of the sum of the volumes of the containers placed on the sump.

Colours
RAL 6018 + galvanized

Dimension table
ART. | A (mm) | B (mm) | C (mm) | D (mm) | CAPACITY | RAL
014491 | 800 | 800 | 335 | 100 | 205 L | 6018 + galvanized

Technical characteristics / specifications

• Article code: 014491
• Dimensions: A = 800 mm, B = 800 mm, C = 335 mm, D = 100 mm
• Capacity: 205 L
• Colour / finish: RAL 6018 + galvanized
• Structure: galvanized grid/slats for support of drums or IBCs
• Forkliftable: yes (brackets under the sump)
• Handling: forks/forklift; optional wheel and handle kit available for manual handling
• Suitability: collection of flammable liquids (GHS 1–3) and substances hazardous to water (GHS 1–4)
• Typical application: for drums or IBCs (support and spill collection)
