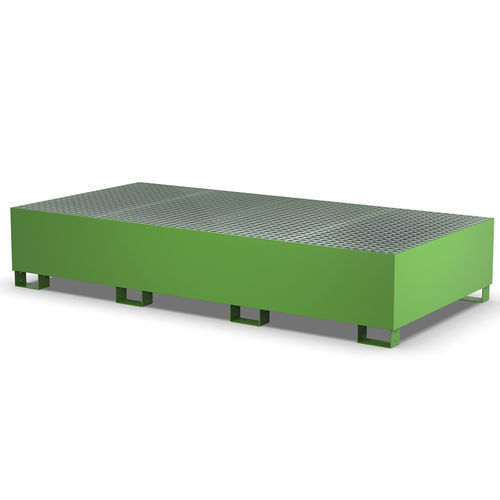

IBC container containment bund 009367

hot-dip galvanised steelwith galvanized grid

Short description
Containment sump with 1400 L capacity for storage of 2 IBCs (2 × 1000 L), featuring a hot-dip galvanized supporting grid. Forklift pockets under the sump facilitate handling with a pallet truck or forklift.

Description
The containment sump is designed for collection of flammable liquids (GHS categories 1–3) and water-polluting substances (GHS categories 1–4). Movable by forklift; equipped with a hot-dip galvanized grid to support IBCs. To check compliance with capacity requirements, consider that the sump must be able to contain at least the greater of the volume of the largest container and 33% of the sum of the volumes of the containers placed on the sump.

Colors
RAL 6018 + ZN

Article details (dimension table)
A | B | C | D | CAPACITY
009367 | 2670 mm | 1300 mm | 400 mm | 100 mm | 1400 L

Characteristics / technical specifications

• Article code: 009367
• Capacity: 1400 L
• Designed for storage of 2 IBCs (2 × 1000 L)
• Hot-dip galvanized grid to support containers
• Forklift pockets under the sump for handling with pallet truck or forklift
• Suitable for collection of flammable liquids (GHS categories 1–3) and water-polluting substances (GHS categories 1–4)
• Dimensions (mm): A = 2670, B = 1300, C = 400, D = 100
• Color: RAL 6018 + zinc coating (ZN)
