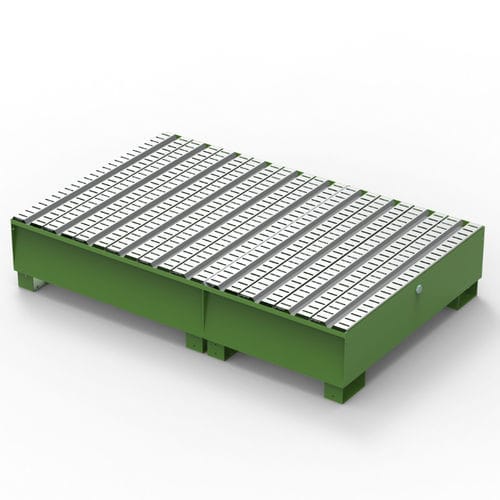

IBC container spill pallet 004706

for drumsgalvanised steelwith galvanized grid

Short description
Modular containment sump composed of two basins joined by a coupling kit, providing a total capacity of 700 liters. A slatted support system secures drums. Lower brackets facilitate movement with a pallet truck or forklift.

Details
The containment sump is suitable for collection of flammable liquids (GHS categories 1–3) and water-polluting substances (GHS categories 1–4). Forkliftable; features galvanized slatted decks to support drums or IBCs.
To verify compliance, the sump must be able to contain at least the greater of the largest container volume and 33% of the sum of volumes of containers placed on the sump.

Colours
RAL 6018 + ZN

Dimensions (mm) and capacity
A: 2000
B: 1300
C: 292
D: 100
Capacity: 700 L

Features / technical specifications

• Model: Containment sump with slatted deck
• Article code: 004706
• Total capacity: 700 L
• Dimensions (mm): A 2000 x B 1300 x C 292 x D 100
• Slats: galvanized to support drums
• Handling: forkable (movable by forklift) and adapted for pallet truck movement via lower brackets
• Suitable for: flammable liquids (GHS 1-3) and water pollutants (GHS 1-4)
• Configuration: modular (composed of two basins joined via coupling kit)
• Colour: RAL 6018 + galvanization
• EAN: 8055175004706
• Some components are protected by Community design and/or industrial invention patents
