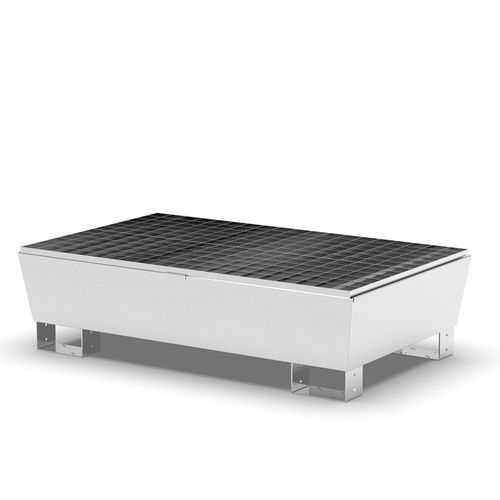

Drum spill pallet 015030

2-drumgalvanised steelwith galvanized grid

Description
Conical collection sump with a capacity of 220 L, designed to support two drums. Reinforced slats provide stable support for drums or tanks. Under-sump brackets facilitate handling with a pallet truck or forklift. Units can be stacked for space-saving during transport or storage. Galvanised finish increases corrosion protection and allows outdoor placement.

Applications
The containment sump is suitable for collecting flammable liquids (GHS categories 1–3) and water-polluting substances (GHS categories 1–4). Equipped with galvanised slats for supporting drums or tanks and can be moved by forklift or manually (optional wheels and handles kit).

Notes on capacity
To verify compliance, the sump must be able to contain at least the greater of: the volume of the largest container or 33% of the total volume of the containers placed above the sump.

Dimensions table
ART. | A (mm) | B (mm) | C (mm) | D (mm) | COLOUR | CAPACITY
015030 | 1300 | 800 | 240 | 100 | galvanized | 220 L
014897 | 1300 | 800 | 240 | 100 | RAL6018 + galvanized | 220 L

Features

• Capacity: 220 L
• Shape: conical
• Designed to support 2 drums
• Material: galvanised (corrosion protection, suitable for outdoor use)
• Galvanised slats for supporting drums or tanks
• Forkliftable (prepared for handling with forks)
• Stackable to optimise storage space
• Suitable for flammable liquids (GHS 1–3) and water-polluting substances (GHS 1–4)
• Available colours: galvanized; RAL 6018 + galvanized

Characteristics / technical specifications

• Available items: 015030, 014897
• Dimensions (A x B x C x D): 1300 x 800 x 240 x 100 mm
• Capacity per item: 220 L
• Colour/finish: galvanized or RAL 6018 + galvanized
• Handling: forkliftable; movable with pallet truck or manually (optional wheels and handles kit)
• Structural features: galvanised support slats, under-sump brackets for handling
• Use: collection and containment of drums and tanks
