IBC container containment bund 013494

for drumsmodularwith galvanized grid

Short description

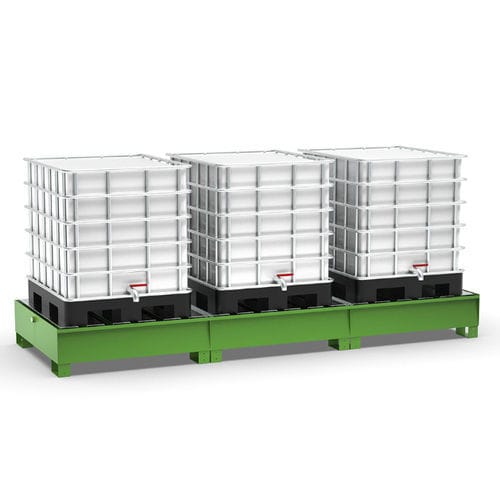

Three connected containment sumps assembled with a coupling kit to form a modular system. Total capacity 1,100 L. Forkliftable via brackets under the basin; optional wheel and handle kit allows manual movement.

Use and compatibility
The containment sump is suitable for collection of flammable liquids (GHS categories 1–3) and water pollutants (GHS categories 1–4). Galvanised slatted supports provide stable support for drums or tanks.

Sizing rule
The sump must be able to contain at least the greater of: the volume of the largest container placed on it, and 33% of the combined volume of all containers located on the sump.

Dimensions table
ART. | VERSION | L (mm) | P (mm) | H (mm) | CAPACITY
013494 | DOGHE | 3600 | 1300 | 392 | 1100 L

Colours
RAL 6018 + ZN

Notes
Certain components are protected by a Community design and/or industrial invention patent.

Characteristics / technical specifications

• Brand: COMI
• Commercial name: Containment sumps with slatted support
• Article code: 013494
• Version: DOGHE
• Total capacity: 1,100 L
• Dimensions: L = 3600 mm, P = 1300 mm, H = 392 mm
• Handling: forkliftable (brackets under the basin); optional wheel and handle kit for manual movement
• Slats: galvanised for supporting drums or tanks
• Suitable for: flammable liquids (GHS 1–3) and water pollutants (GHS 1–4)
• Modularity: three sumps connected via coupling kit to create modular systems
• Colour: RAL 6018 + ZN
• Some components protected by design and/or patent
