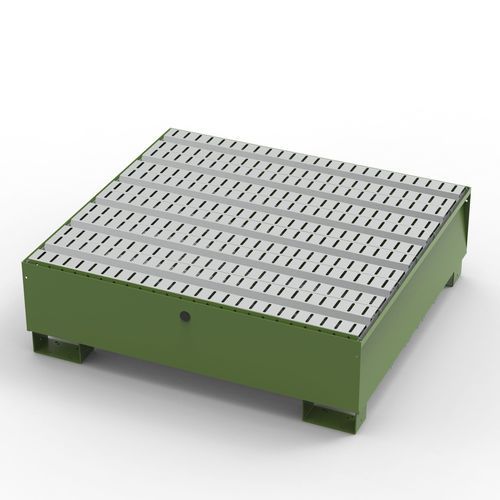

Drum containment bund 001286

4-drumgalvanised steelmobile

Short description
Containment sump with 300 L capacity, conical shape and a system of combs and slatted supports for drum mounting. Brackets under the sump facilitate handling by pallet truck or forklift. During transport or when not in use, sumps can be stacked to save storage space. The galvanized version provides corrosion protection allowing outdoor placement.

Colors
RAL 6018 + ZN

Description
The containment sump is suitable for collecting flammable liquids (GHS categories 1–3) and water pollutants (GHS categories 1–4). Movable by forklift or by hand with the optional wheel and handle kit; equipped with galvanized slats for support of drums or small tanks.
To determine whether the sump capacity complies with requirements, consider that the sump must be able to contain at least the larger of the volume of the largest container and 33% of the sum of the volumes of the containers placed above the sump itself.

Article details (table)
ART. | A (mm) | B (mm) | C (mm) | D (mm) | CAPACITY
001286 | 1300 | 1200 | 292 | 100 | 300 L

Notes
Some components are protected by a registered community design and/or industrial invention patent. Presence of indicators/marks related to patent, corrosivity and hazard.

Technical features / specifications

• Brand: COMI
• Commercial name: Containment sump with slatted support
• Capacity: 300 L
• Shape: conical
• Drum support system: combs and galvanized slats
• Stackable: Yes
• Handling: by pallet truck or forklift; optional wheel and handle kit
• Version available: galvanized for outdoor use
• Colouring: RAL 6018 + ZN
• Suitable for: collection of flammable liquids (GHS 1–3) and water pollutants (GHS 1–4)
• Article (code): 001286
