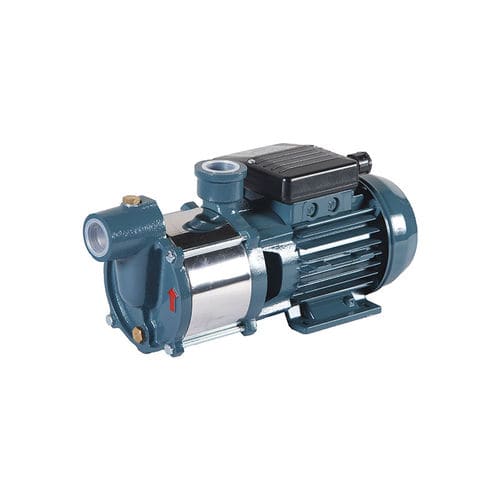

Centrifugal pump MC series

waterelectricself-priming

MULTICELLULAR HORIZONTAL PUMPS. THESE PUMPS FEATURE EXCELLENT HYDRAULIC PERFORMANCE, A VERY LOW NOISE WHILE RUNNING, AND ARE PARTICULARLY SUITED FOR USE IN CIVIL AND INDUSTRIAL APPLICATIONS, IN HIGH PRESSURE IRRIGATION SYSTEMS AND CAR WASHING SYSTEMS. SCOPE OF APPLICATION: Multicellular horizontal pumps. These pumps feature excellent hydraulic performance, a very low noise while running, and are particularly suited for use in civil and industrial applications, in high pressure irrigation systems and car washing systems. It is recommended that these pumps are used to carry only chemically pure liquids and free of foreign matters, with temperature not higher than 40°C. PUMP: Pump body and suction flange made of G20 cast iron, motor casing and shaft made of stainless steel, diffusers and impellers made of Noryl and ceramic/graphite mechanical seal. MOTOR: Electric, closed-type with external cooling fan, IP 44 safety class. F insulation. The standard versions of single-phase motors are fitted with termostat-controlled safety microswitches to avoid undesirable damages to the motor. The user must provide protection for three-phase electropumps. TENSION: M: 230-240 V. 50 Hz; T: 230/400 V. 50 Hz. Different voltage and frequency ratings are available on request. APPLICATIONS: Domestic, Irrigation, Industry
