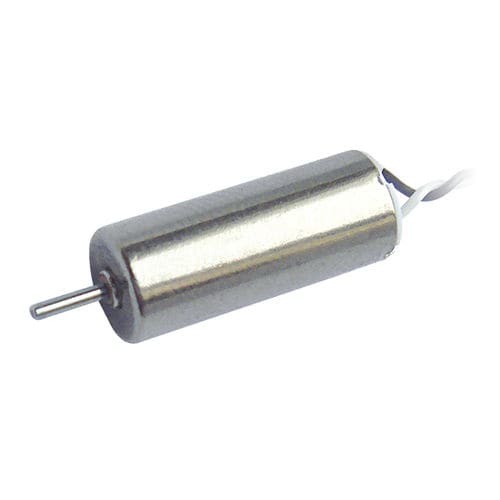

Coreless motor L0615N5MsynchronousDCcompact
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, DC
- Configuration
- coreless, compact
- Applications
- for household appliances
- Power
1 W, 1.1 W
(0 hp, 0 hp)- Intensity
Max.: 1,786 mA
Min.: 75 mA
- Torque
0.0001 Nm, 0.001 Nm, 0.0011 Nm
(0.000074 ft.lb, 0.000738 ft.lb, 0.000811 ft.lb)- Rotational speed
Max.: 43,050 rpm
(270,491.1275 rad.min-1)Min.: 31,030 rpm
(194,967.2401 rad.min-1)- Diameter
6 mm
(0.24 in)
Description
L0615N5M
615 DC Coreless Motor
Diameter：6mm Length : 15mm Voltage：2.5V 、3.4V Max. Output Power ：1.1W Speed：36000-43050rpm
Applications
Mini UAV, remote control hobby products, small household appliances, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
