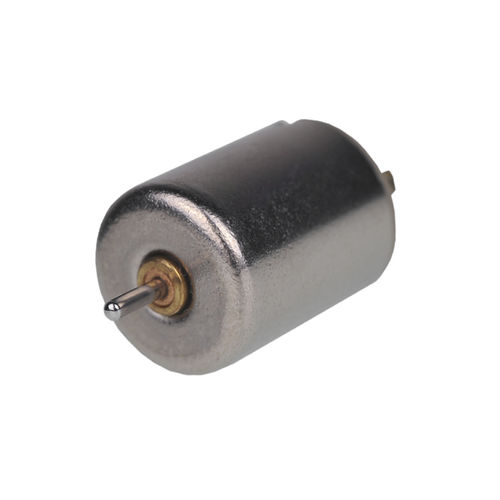

Coreless motor L1020N5MsynchronousDCcompact
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, DC
- Configuration
- coreless, compact, mini
- Applications
- for household appliances
- Power
4.4 W, 7.4 W, 17.5 W
(0.01 hp, 0.01 hp, 0.02 hp)- Intensity
Max.: 4,111 mA
Min.: 32 mA
- Torque
Max.: 0.0148 Nm
(0.010916 ft.lb)Min.: 0.002 Nm
(0.001475 ft.lb)- Rotational speed
Max.: 45,300 rpm
(284,628.2944 rad.min-1)Min.: 18,990 rpm
(119,317.689 rad.min-1)- Diameter
10 mm
(0.39 in)
Description
L1020N5M
1020 3.8V Mini Coreless Motor
Diameter：10mm Length : 20mm Voltage：3.8V 、5V 、7.4V Max. Output Power ：17.5W Speed：29100-45300rpm
Applications
Mini UAV, remote control hobby products, small household appliances, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
