Coreless motor L1013N5MsynchronousDCmini
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, DC
- Configuration
- coreless, mini
- Applications
- for household appliances
- Power
0.1 W, 1.8 W, 1.9 W
(0 hp, 0 hp, 0 hp)- Intensity
Max.: 270 mA
Min.: 10 mA
- Torque
Max.: 0.0024 Nm
(0.00177 ft.lb)Min.: 0.0003 Nm
(0.000221 ft.lb)- Rotational speed
Max.: 34,750 rpm
(218,340.6894 rad.min-1)Min.: 4,000 rpm
(25,132.7412 rad.min-1)- Diameter
10 mm
(0.39 in)
Description
L1013N5M

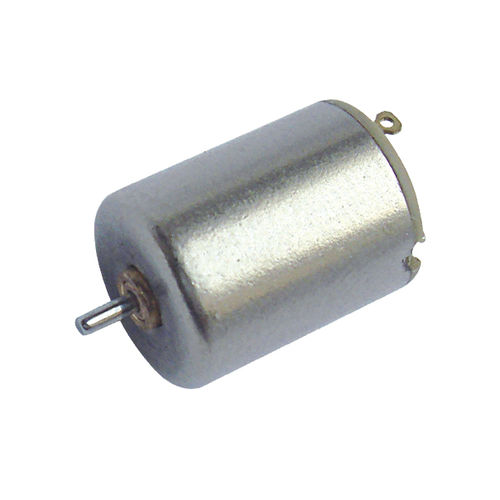

10mm Mini Coreless Motor
Diameter：10mm Length : 13mm Voltage：3V 、5V、5.5V Max. Output Power ：1.8W Speed：10000-34750rpm
Applications
Mini UAV, remote control hobby products, small household appliances, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
