Coreless motor L0710N5MsynchronousDCcompact
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, DC
- Configuration
- coreless, compact, micro
- Applications
- for household appliances
- Power
0.29 W, 1.65 W, 1.9 W
(0 hp, 0 hp, 0 hp)- Intensity
Max.: 1,470 mA
Min.: 50 mA
- Torque
Max.: 0.0009 Nm
(0.000664 ft.lb)Min.: 0.0001 Nm
(0.000074 ft.lb)- Rotational speed
Max.: 78,050 rpm
(490,402.6132 rad.min-1)Min.: 20,890 rpm
(131,255.7411 rad.min-1)- Diameter
7 mm
(0.28 in)
Description

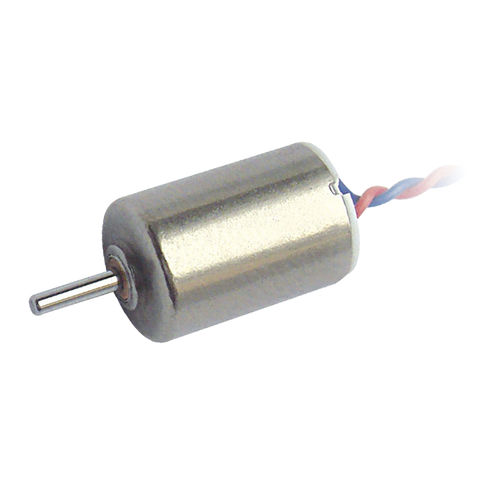

L0710N5M
7mm Micro Coreless DC Motor
Diameter：7mm Length : 10mm Voltage：3V 、5V、8V Max. Output Power ：1.9W Speed：32500-78050rpm
Applications
Mini UAV, remote control hobby products, small household appliances, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
