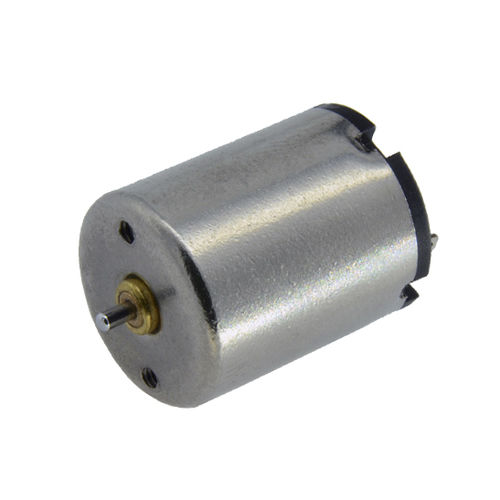

Coreless motor L1213N5MsynchronousDCcompact
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, DC
- Configuration
- coreless, compact, micro
- Applications
- for household appliances
- Power
0.9 W, 2.2 W
(0 hp, 0 hp)- Intensity
Min.: 10 mA
Max.: 1,500,000 mA
- Torque
0.0005 Nm, 0.0019 Nm, 0.0028 Nm
(0.000369 ft.lb, 0.001401 ft.lb, 0.002065 ft.lb)- Rotational speed
Min.: 13,560 rpm
(85,199.9928 rad.min-1)Max.: 30,000 rpm
(188,495.5592 rad.min-1)- Diameter
12 mm
(0.47 in)
Description
L1213N5M
12mm Micro DC Coreless Motor
Diameter：12mm Length : 13mm Voltage：6V 、7.4V Max. Output Power ：2.2W Speed：18500-30000rpm
Applications
Mini UAV, remote control hobby products, small household appliances, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
Catalogs
No catalogs are available for this product.
See all of Constar Motion Co., LTD‘s catalogsOther Constar Motion Co., LTD products
DC Coreless Motor
