Coreless motor L1630N5MsynchronousDC6 V
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, DC
- Voltage
- 6 V, 5 V, 3 V
- Configuration
- coreless, compact, micro
- Applications
- for household appliances
- Power
0.3 W, 2 W, 6.4 W
(0 hp, 0 hp, 0.01 hp)- Intensity
Max.: 4,290 mA
Min.: 15 mA
- Torque
Max.: 0.0202 Nm
(0.014899 ft.lb)Min.: 0.0005 Nm
(0.000369 ft.lb)- Rotational speed
Max.: 12,000 rpm
(75,398.2237 rad.min-1)Min.: 1,940 rpm
(12,189.3795 rad.min-1)- Diameter
16 mm
(0.63 in)
Description

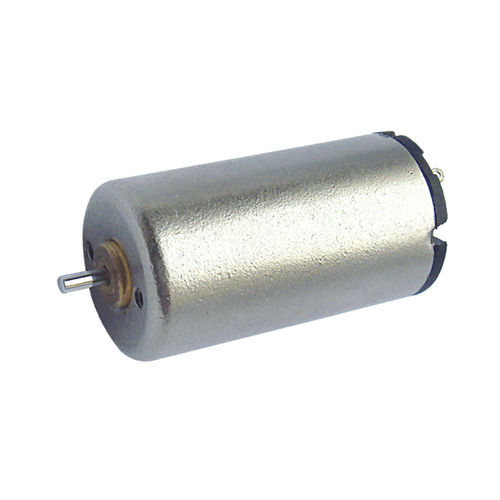

L1630N5M
16mm 3V Micro DC Coreless Motor
Diameter：16mm Length : 30mm Voltage：3V、5V 、6V Max. Output Power ：2.0W Speed：2500-12000rpm
Applications
Mini UAV, remote control hobby products, small household appliances, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
