Coreless motor L1515N5MsynchronousDC12 V
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, DC
- Voltage
- 12 V
- Configuration
- coreless, compact, micro
- Applications
- for household appliances
- Power
4.5 W, 8.3 W
(0.01 hp, 0.01 hp)- Intensity
Max.: 4,625 mA
Min.: 35 mA
- Torque
0.001 Nm, 0.0068 Nm, 0.0098 Nm
(0.000738 ft.lb, 0.005015 ft.lb, 0.007228 ft.lb)- Rotational speed
Max.: 32,500 rpm
(204,203.5225 rad.min-1)Min.: 21,340 rpm
(134,083.1745 rad.min-1)- Diameter
15 mm
(0.59 in)
Description

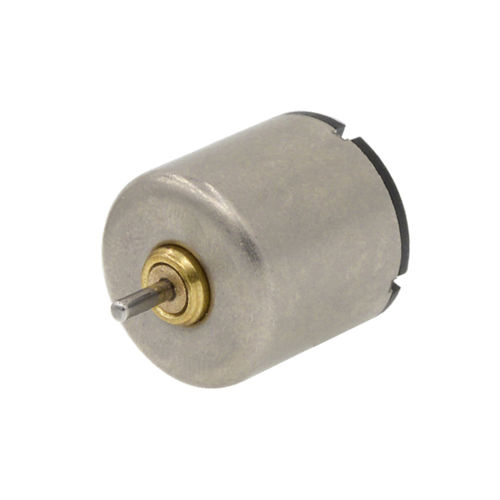

L1515N5M
15mm Micro DC Coreless Motor
Diameter：15mm Length : 15mm Voltage：12V 、7.4V Max. Output Power ：8.3W Speed：25000-32500rpm
Applications
Mini UAV, remote control hobby products, small household appliances, etc.
Options
Lead wires length、Shaft length、Special coils、Gearheads
Unit Price
Price upon request
Catalogs
No catalogs are available for this product.
