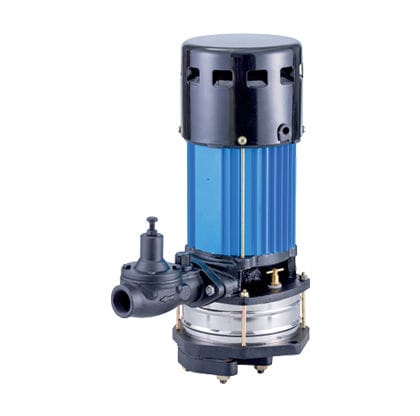

Centrifugal pump A5/AJ5*waterelectricnormal priming
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Priming
- normal priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- suction, lift
- Material
- steel, copper
- Protection level
- IP54
- Other characteristics
- continuous
- Flow
3 m³/h
(105.944 ft³/h)- Head
92 m
(301'10" )- Power
Max.: 1.5 kW
(2.04 hp)Min.: 0.37 kW
(0.5 hp)- Length
32 mm, 40 mm
(1 in, 2 in)- Width
25 mm, 32 mm
(0.98 in, 1.26 in)- Height
25 mm
(0.98 in)
Description
C.R.I. Deep Well Jet Centrifugal pumpsets volute chamber and impellers are designed to give the best possible hydraulic efficiency and suction lift characteristics. These Pumpsets are powered by a totally enclosed fan cooled (TEFC) and screen protected drip proof (SPDP), AC induction two pole motor, suitable for continuous duty.
Motor stator is made of low watt loss ferro silicon steel lamination. The winding are high grade enameled copper wire and are varnish impregnated. Construction of motor frame and usage of quality materials result in high performance and low temperature rise, thereby increasing the life cycle of the motor.
