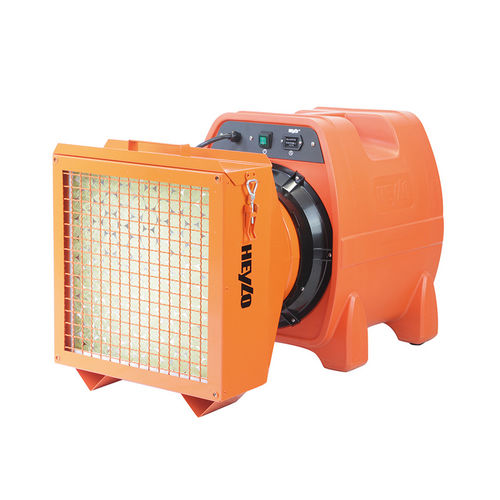

Paint mist extractor FarbStop 3000

aerosolfiltration mediamobile

Product overview
Mobile overspray extraction unit for workshops and building sites. Combined ventilator (PowerVent 3000), filter housing and dry overspray filter suitable for solvent-free paints. Designed to remove paint mist and particulate generated by spraying (compressed air or airless). Portable and quick to mount; targeted extraction possible via an air duct connection.

Key features

• Direct extraction of paint mist and particles during spraying operations
• High fan air flow (max. 3,102 m³/h) for effective capture
• Dust, dirt and paint mist are extracted directly into the filter housing
• Portable design for quick transport and installation on site
• Targeted extraction possible by connecting an air duct

Components

• Ventilator: PowerVent 3000
• Filter housing
• Dry overspray filter (suitable for solvent-free colours)

Applications

• Commercial buildings
• Construction sites
• Industry, factories and production facilities
• Events and entertainment setups
• Rental companies

Technical specifications

• Model: Heylo FarbStop 3000
• Fan air flow (max): 3,102 m³/h
• Power supply: 230 V / single phase / 50 Hz
• Included filter: Paint overspray filter (for solvent-free colours)
• Sound level @ 3 m: 78 dB(A)
• Filter housing dimensions (L x W x H): 450 x 430 x 450 mm
• Weight: 29 kg
