Paint mist extractor FarbStop 3000

filtration mediamobile

Overview

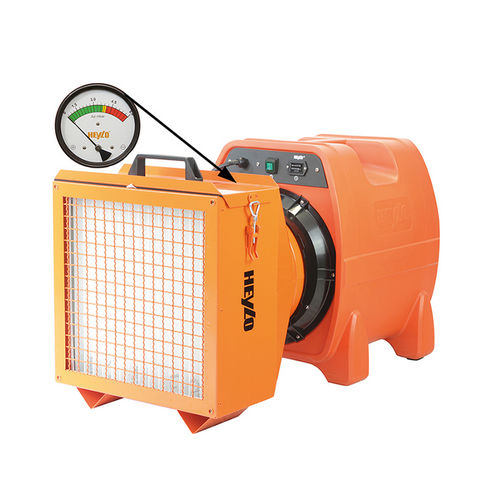

The Heylo StaubStop 3000 PLUS is a mobile dust extractor for direct capture of dust, dirt and paint mist at source. It combines a PowerVent 3000 fan with a PLUS filter housing and a two-stage filtration (G4 prefilter + F9 main filter) for reliable removal of fine and coarse particles in workshops and construction sites.

Components

• PowerVent 3000 fan (max. air flow 3102 m³/h)
• PLUS filter housing with pressure indicator
• Prefilter G4
• Main fine dust filter Heylo F9 (filter class M)

Use & safety

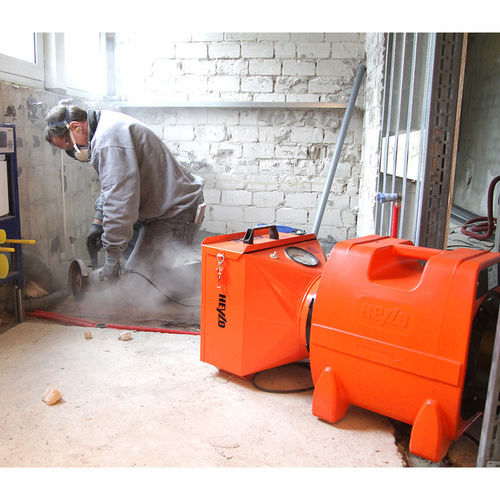

Designed for mobile air cleaning on construction sites and in industrial workshops to reduce worker exposure to respirable dust. The two-stage filtration retains coarse and fine particles; the pressure indicator shows filter loading and prompts timely maintenance to preserve performance and safety.

Operation
The unit is quick to transport and fast to install. It permits direct or targeted extraction via an optional air duct connection. Filters are replaceable; use specified replacement kits to maintain filtration class and airflow.

Key features

• Direct extraction of dust, dirt and paint mist at source
• Two-stage filtration: G4 prefilter + Heylo F9 main filter (class M)
• High air flow for effective capture (3102 m³/h)
• Portable and fast to deploy on site or in workshop
• Pressure indicator for clear filter-change signal
• Optional duct connection for targeted extraction

Technical specifications

• Fan air flow (max.): 3102 m³/h
• Power supply: 230 V / 1ph / 50 Hz
• Included filters: dust filter set (G4 + F9)
• Sound level @ 3 m: 78 dB(A)
• Filter housing size (L x W x H): 420 x 450 x 510 mm
• Weight: 30 kg
• Fan: PowerVent 3000

Suitable for

• Commercial buildings
• Construction and renovation sites
• Industrial workshops, factories and production areas
• Leisure and recreation facilities
• Rental companies and equipment fleets
