Dust control wall DCD-3.0

Overview

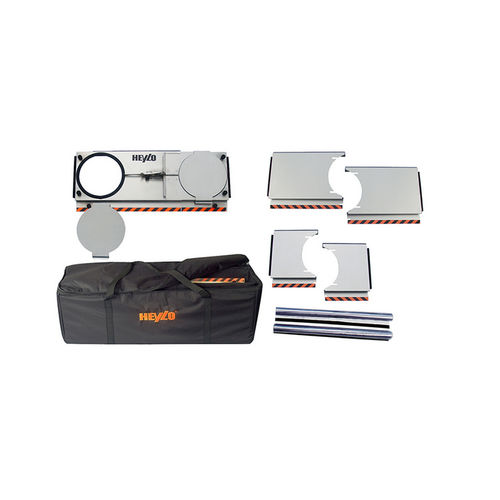

Portable dust protection door consisting of a basic door element (for door widths 680–1,430 mm with included adapters), PVC film with Velcro strip, 4-piece adapter set and transport bag. The Heylo DCD-3.0 enables fast, controlled partitioning between the working/dirty area and the clean area during renovation and construction tasks.

Key features

• Designed for rapid, secure sealing of doors during renovation and construction work
• Two integrated dust extraction openings for direct hose connection and flexible combinations with dust protection systems
• Allows connection of air cleaners or fans via air hoses for targeted dust extraction
• Suitable for work with hazardous substances (e.g. mould) when used with HEPA-filtered air cleaners
• Compact transport in supplied carrying bag
• Quick and simple mounting via quick-release closure
• High airflow rates possible depending on connected equipment
• Flexible adaptation to different door widths thanks to included adapters (A–D)
• Easy to clean and maintain

Applications / Suitable for

• Commercial buildings and offices
• Construction and renovation sites
• Industrial facilities, factories and production areas
• Leisure and recreation facilities during refurbishment

Operation notes
Dust extraction in the working area: Integrated extraction openings permit routing a hose directly to the dust source for local extraction. Mobile fans and filter fans extract dust and collect it in dust bags or filter units. Negative pressure: In combination with a filter fan and a hose connection placed in the clean area, the DCD-3.0 supports negative pressure maintenance in the work area. For hazardous substances (e.g. mould) use filter fans or air cleaners equipped with HEPA filters.

Technical specifications

• Model: Heylo DCD-3.0
• Brand: Heylo
• Basic element (L x W x D): 680–830 x 300 x 81 mm
• Suitable for door widths (incl. adapters): 680–1,430 mm
• Hose connections: 2 x Ø 205 mm
• Weight: 8 kg
• Includes: PVC film with Velcro tape, 4-piece adapter set (adaptors A–D), transport bag
