Dust control wall DCS-PF 3500

Overview

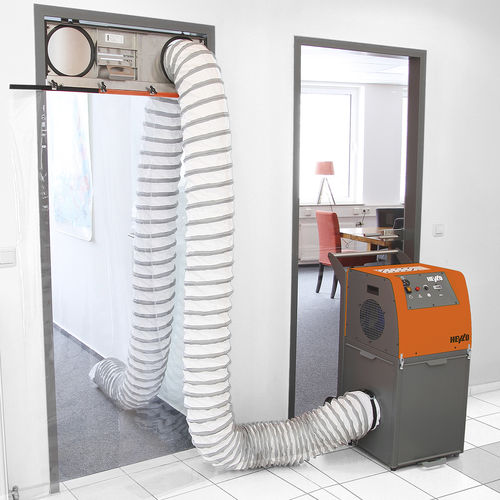

The Heylo dust protection system DCS is a mobile solution combining a dust protection door (DCD-3.0) with a PF 3500 air cleaner/fan to remove dust quickly and safely from the work area during renovation or remediation while protecting adjacent building areas.

How it works
The DCS creates a sealed partition at door openings and provides dust extraction with negative pressure maintenance in rooms. This allows renovation and remediation works to proceed while minimising dust spread and reducing the need for extensive post-cleaning. For hazardous contaminants (e.g. mould), a HEPA-equipped purifier can be used to enhance protection.

Key features

• Mobile system composed of a dust protection door (DCD-3.0) and a mobile air cleaner or fan (PF 3500) in the white area.
• Two integrated extraction openings for connection to an air cleaner or fan with hose/dust bag.
• Designed for dust extraction and maintenance of negative pressure in rooms.
• Reduces the need for extensive cleaning after works.
• Suitable for work with hazardous substances when used with HEPA filters.
• Protects health and allows living/working in adjacent rooms to continue undisturbed.
• For very large rooms or heavy dust loads, air purifiers with two hoses can be connected (e.g. PF 3500).
• Easy transport with carrying bag for the DCD-3.0.
• Quick installation of the DCD-3.0 via quick release fastener; high airflow possible through the door.

Accessories included / typically supplied as a kit

• Dust protection door DCD-3.0 (door base element + 2× PVC foil with velcro + transport bag)
• Heylo PF 3500 air cleaner (with fine dust filter F9 / class M; HEPA option for hazardous substances)
• Air hose (Ø 205 mm) and protective dust sheets (2× to be closed, 1× with nozzle)

Technical specifications

• Model: Heylo DCS-PF 3500
• Fan air flow rate max.: 3,100 m³/h
• Air flow with F9 filter / M-class / H14 filter: 2,795 / 2,420 m³/h
• Minimum air flow with saturated filters: 1,700 m³/h
• Power supply: 230 V / 1ph / 50-60 Hz
• Power consumption: 0.48 kW
• Current consumption: 2.5 A
• Sound level @ 3 m: 0–70 dB(A)
• Hose inlet/outlet diameter: 205 mm
• Box size (L x W x H): 1200 x 800 x 1250 mm
• Weight: 70 kg
