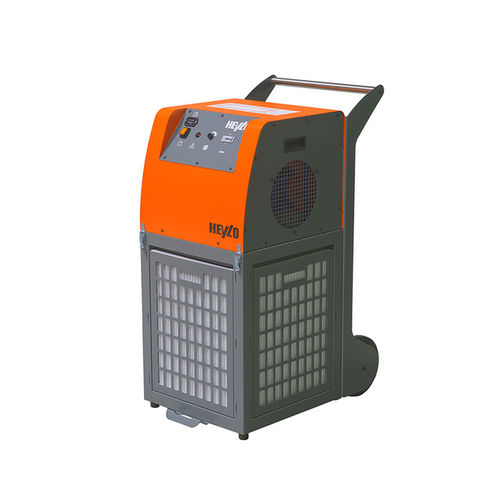

Floor-standing air purifier PowerFilter 3500

HEPA filteractivated carbonfilter

Product description
The Heylo PowerFilter 3500 is an air cleaner that removes harmful particles (dust, mould spores and similar contaminants) at source during restoration, renovation and industrial work. The unit supports connection of multiple hoses to extract dust from several workstations simultaneously and is built for continuous use on construction and industrial sites.

Key features

• Connection of several hoses for simultaneous extraction at multiple workstations
• Continuously variable air flow
• 3-stage filter system (pre-filter, fine filter, HEPA / optional activated carbon)
• MID energy meter (kWh)
• Closable cabinet for contaminated-use operations
• Metal housing
• Low-noise, energy-efficient operation
• Filter change indicator
• Operating hours counter
• Includes 3 × pre-filter G4

Filters and maintenance
Filters are quickly accessible and easy to replace:

• Pre-filter – coarse dust filter class G4 (EN 779)
• Main filter – fine dust filter class F9 (EN 779) / dust class M (EN 60335)
• Main filter – HEPA H14 suspended solids filter (EN 1822) / dust class H (EN 60335)
• Main filter – activated carbon filter (for odours and gases)

How it is used
The PF 3500 removes contaminants directly at the source to prevent their spread into other parts of the building. By connecting multiple hoses, dust extraction can be performed at several workplaces simultaneously, which suits restoration, renovation and demanding industrial applications.

Technical specifications

• Fan air flow rate max.: 3,100 m³/h
• Air flow with F9 / M-class / H14 filter: 2,795 / 2,420 m³/h
• Minimum air flow with saturated filters: 1,700 m³/h
• Power supply: 230 V / 1ph / 50-60 Hz
• Power consumption: 0.48 kW
• Current consumption: 2.5 A
• Sound level @ 3 m: 0–70 dB(A)
• Hose inlet/outlet diameter: Ø 205 mm
• Product size (L x W x H): 710 x 460 x 1,010 mm
• Weight: 48 kg
