Dust control wall DCS-PF 1000

Product overview The Heylo DCS-PF 1000 is a mobile dust control system that couples a Dust Protection Door (DCD-3.0) with a PF 1000 mobile air cleaner (or fan) to enable dust extraction and negative-pressure containment during renovation and restoration. Designed for rapid installation and transport, it reduces dust transfer to adjacent rooms and minimises post-work cleaning.

Included components

• Dust Protection Door DCD-3.0 (base door element + 2 PVC foils with velcro + transport bag)
• Heylo PF 1000 mobile air cleaner
• Coarse pre-filter and fine dust filter (F9 / class M)
• Optional HEPA filter (H14 / class H) for hazardous dust (e.g. mould)
• Flexible hose, length 7.6 m, diameter 205 mm

Use and functionality

• DCD-3.0 seals door openings between the dirty (work) area and the clean (white) area to enable containment

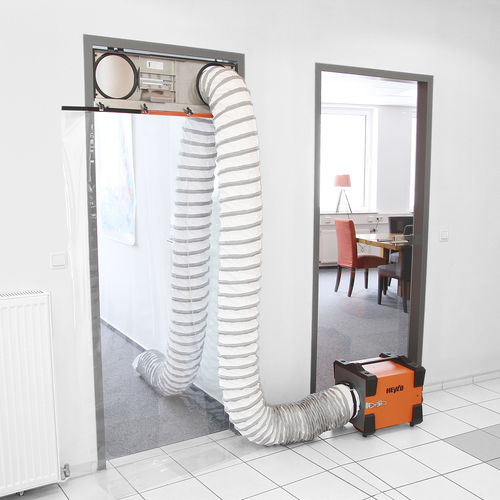

• Locating the air cleaner in the clean area and routing the hose through the DCD-3.0 creates a negative pressure in the renovation area and extracts dust at source
• Two integrated extraction openings allow connection of hoses or collection bags for direct dust removal
• Suitable for door widths from 680 to 1430 mm and expandable with door adapters
• Quick installation and easy transport reduce downtime and cleaning costs

Key features

• Mobile system combining DCD-3.0 and PF 1000 for localised dust extraction and room depressurisation
• Optional HEPA H14 filtration for safe work with hazardous particulates
• Connectable to higher-capacity air purifiers or two-hose units for very large rooms
• Easy transport with carrying bag and rapid fastening system for fast deployment
• High possible airflow via adapter options; replaceable filters and disposable dust bags for simple maintenance

Product specifications Fan air flow rate max.: 917 m³/h
Air flow with F9 filter / H14 filter: 760 / 515 m³/h
Min. air flow with saturated filters: 346 m³/h
Power supply: 230 V / 1 ph / 50 Hz
Power consumption: 0.185 kW
Current: 1.33 A
Sound level @ 3 m: 0–66 dB(A)
Hose inlet/outlet diameter: Ø 205 mm
Box size (L × W × H): 800 × 600 × 1250 mm
Weight: 35 kg

Technical specifications

• Max. fan air flow: 917 m³/h
• Air flow with filtration: 760 m³/h (F9) or 515 m³/h (H14)
• Min. air flow with saturated filters: 346 m³/h
• Electrical supply: 230 V / 1 ph / 50 Hz; power 0.185 kW; current 1.33 A
• Noise level at 3 m: 0–66 dB(A) depending on configuration and filter loading
• Hose diameter: Ø 205 mm
• Dimensions (L × W × H): 800 × 600 × 1250 mm
• Weight: 35 kg
• Includes DCD-3.0 with PVC foils and transport bag; compatible with optional HEPA H14 filters
